A.KO COOL

Keep your freshness promise with a FERROPLAST® box body trailer. Diverse equipment options make the A.KO COOL box body trailer the ideal vehicle for temperature-controlled logistics.

Urban transport in temperature-controlled transport with the A.KO COOL box body trailer

Your benefits

Flexible load securing systems combined with multifunctional floors, safety beams and double-decker equipment.
Read more
Energy-efficient temperature control with brand-name cooling units and FERROPLAST^® technology box body.
Read more
Fulfils the criteria of different certification bodies, including DIN EN 12642 Code XL, ATP, HACCP and PIEK criteria for ease of handling.
Read more
Variable equipment for customised interior division into the required temperature zones for MultiTemp transport.
Read more

Chassis & running gear

Running gear

Running gear

Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.

Body

Double-decker system
Special equipment
Rear
Floor
Lighting

Interior

High loading volume with the double-decker system.

Double-decker system

Flexible and higher utilisation of the trailer's capacity, thanks to its double-decker system. Ideal for freight that cannot be stacked. The system provides for gap-free loading using two infinitely height-adjustable split levels.

Special equipment

Reinforced roof panels for meat transport.

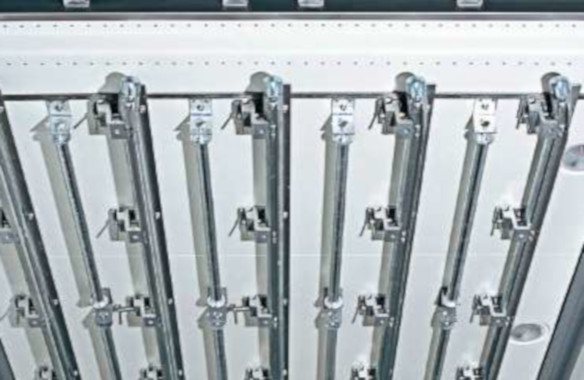

Meat hanging equipment

The roof and side walls of the insulated FERROPLAST^® box body are specially reinforced. The Euro meat hanging system is available for meat transport.

Rear

Insulated rear doors prevent the loss of cold air.

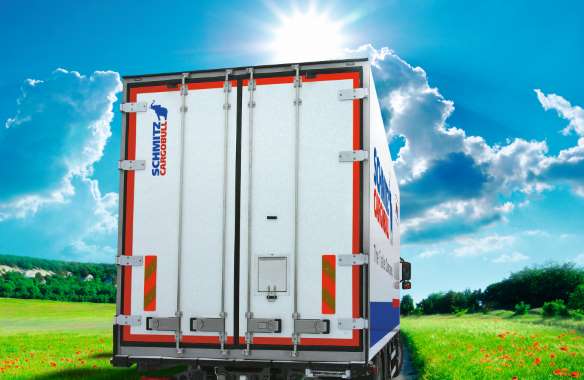

Double wing door

Maximum safety and optimum insulation, thanks to FERROPLAST^® rear doors. With single or double locking, depending on transport requirements and trailer dimensions.

Rear portal designs reduce the loss of cold air specifically with partial opening.

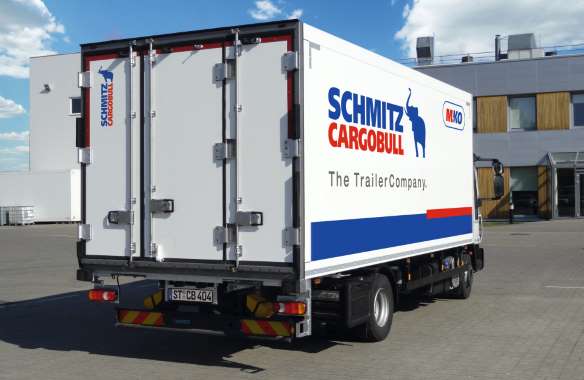

Multi-door rear portal

Three- or four-door rear portal with a central door specifically designed for partial opening to reduce the loss of cold air during loading and unloading.

Roller shutter at the rear for fast loading and unloading.

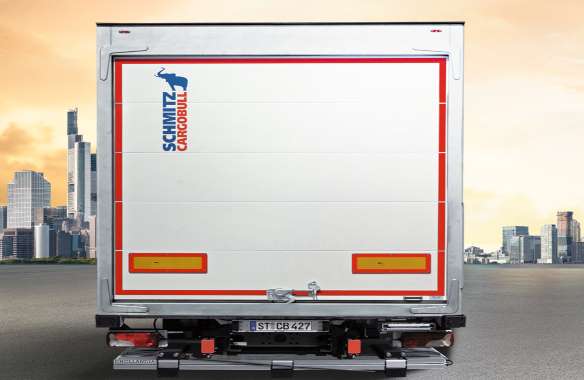

Roller shutter

The insulated roller shutter ensures that there is no more lost time or lost refrigeration, as the trailer can be opened once it has reached the ramp.

Fast loading and unloading without opening the swing doors.

Rear supporting flap

Fast loading and unloading without opening the swing doors. A FERROPLAST^® panel is fitted as a top flap to close the upper part of the tailgate together with the tail lift.

Protection of the rear with standard rubber bumpers.

Standard rubber bumper

As the trailer is approaching a ramp, the rubber bumpers protect the trailer body from damage by bumps, and impact shocks are dampened. The bumpers prevent expensive and time-consuming repairs.

Roller corner bumpers even out loads at the rear

Roller corner bumper

Roller corner bumpers compensate for vertical motion during loading and unloading on the ramp. The rubber bumpers prevent damage to the rear portal, protecting the semi-trailer.

Compression roller bumper for optimum protection at the rear.

Compression roller bumper

The compressible stainless steel bumpers compensate for vertical movements under load and absorb impact shocks. The trailer body is protected and the impact force is directed into the chassis.

Scuff rail reduces wear with frequent loading and unloading.

Scuff plates

Scuff plates welded to the floor protect the side walls from damage. Insulation quality is unaffected, as there are no screw or rivet joints.

Reversing camera for safe loading and unloading, and protection of everyone involved.

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.

Tail lift for easy loading and unloading.

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.

Floor

Multi-functional floor

The floor has a significantly longer service life than conventional floors, while also being lighter and more slip-resistant. Vertical clamping beams can be inserted directly into the recessed load securing profiles.

Side wall

Internal lighting

Good illumination of the interior of the box is crucial for safe working conditions. A range of different light and switch versions are available to suit all requirements.

Exterior lighting provides for the safety of the truck and other road users.

External lighting

Side markers, and front and rear lights on trailers are required by law. Additional reversing lights or working spotlights and a warning lamp for the tail lift are also optionally available.

Temperature-controlled transport

MultiTemp equipment
Cooling unit
Strip curtain

MultiTemp equipment

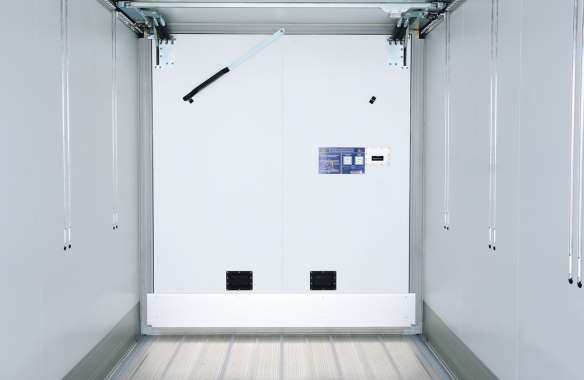

Mobile partition to create different temperature zones.

Mobile partition

When transporting refrigerated products, often multiple temperature zones need to be set up within the trailer. Mobile partitions enable the trailer interior to be divided into different temperature zones.

Creation of temperature zones where they are needed

Variable longitudinal partition

Longitudinal partition walls with variable end sections enable different sizes of additional temperature zones to be created quickly and simply.

Plastic partition for ease of handling.

Plastic partitions

Lightweight plastic partitions ensure that goods can be safely handled within a confined space.

Cooling unit

Distribution traffic in temperature-controlled transport with the A.KO COOL box body trailer.

Brand-name cooling unit

Brand-name cooling units from leading manufacturers on the front wall. We fit quiet and efficient cooling units from well-known manufacturers

Strip curtain

Strip curtain for the M.KO truck box body

Strip curtain

Variable strip curtains, which can be moved lengthwise, guarantee enhanced goods safety while reducing fuel use, as less cooled air is lost through open doors with partial loads.

Assist systems

Electronic ramp approach aid

Electronic ramp approach aid

Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.

Load securing

Lashing points and aids

Lashing points and aids

S.KO COOL lashing eyes

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.

Truck Bodies load securing belts

Load securing belts

Load securing belts can be flexibly used with partial loads to prevent them from slipping or toppling over.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

DIN EN 1264 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
Read more
ATP certification
Our trailers comply with ATP Class FRC or FNA, depending on the application and equipment options, to prove that the refrigeration chain remains intact during transport.
Read more
HACCP
Our trailers are uncompromising when it comes to hygiene for food and pharmaceutical transport. Their interiors comply with the most stringent HACCP cleanliness and hygiene requirements.
Read more
PIEK
They meet the exacting PIEK criteria for deliveries in urban areas to reduce noise at night.
Read more

Our services

Service contracts

The right service contract gives you full control over the costs and we make sure that you stay mobile!

More about:Service contracts

Service Partners keep you mobile and minimise your downtimes.

Telematics

TrailerConnect® telematics provides you with all the information you need on your trailers.

More about:Telematics

TrailerConnect? telematics provides you with all the information you need on your trailers.

Financing

We can provide you with an individual quote with attractive terms and conditions for the entire lifecycle of your investment.

More about:Financing

Individual quote with attractive terms and conditions for the entire lifecycle of your investment.
