Robust, flexible with universal uses: higher payloads, shorter load times and simple load securing - that's the Schmitz Cargobull S.CS UNIVERSAL curtainsider semi-trailer.
S.CS Universal curtainsider semi-trailer - robust, flexible with universal uses

Your benefits

  • The EcoGeneration, the EcoFIX and EcoFLEX save fuel and CO2 with their aerodynamically optimized body.
    Read more
  • TrailerConnect® telematics system to enable you to monitor your trailers and freight.
    Read more
  • New generation, rolled, galvanised MODULOS chassis – easy to maintain with a 10-year warranty against rust-through
    Read more
  • POWER CURTAIN PLUS - Increases the rigidity of the curtain via pre-tensioning in the tarpaulin. Ideal for the transportation of non-rigid goods.
    Read more
  • The right options to meet every transport requirement.
    Read more
  • POWER CURTAIN - lath-free body for fast loading and unloading.
    Read more
  • SPEED CURTAIN - access to your goods in seconds.
    Read more
  • Excellent structural rigidity of the body in accordance with DIN EN 12642 Code XL, optionally with Beverage Certificate and DL Directive 9.5.
    Read more
  • Comprehensive services from financing to trade-in of your used trailer, for optimum Total Cost of Ownership.

    Read more
  • Exceptionally high payload combined with the X-LIGHT equipment package.
    Read more

Equipment packages

  • X-LIGHT

    Greater payload and efficiency due to reduced unladen weight. Saves fuel costs and optimises use of the cargo space.
    Read more

  • KP+

    The reinforced design of the chassis enables a trailer load of up to 18 tonnes to be achieved, meaning that a higher total weight can be used. 4x2 as well as 6x2/6x4 semi-trailer tractors can be used, thanks to the long 8,130 mm wheelbase.
    Read more

  • Reinforced chassis

    And with a reinforced chassis, compact and very heavy goods weighing up to 25 tonnes can be efficiently transported on a cargo area length of only 6m. This makes the S.CS even more flexible when the normal distributed load is not sufficient.
    Read more

  • Cross-border transport

    The TIR equipment package for even greater safety and comfort in cross-border goods transport. Just what you need when you want to get through the border crossing with shorter waiting times.
    Read more

  • DB equipment

    Combined transport is an economical alternative particularly over longer distances. The trailers have gripper edges enabling the semi-trailers to be easily loaded by crane or reach-stacker, for optimum vertical handling.
    Read more

  • Ferry equipment

    Safe and sound on the open seas with ferry equipment for accompanied and unaccompanied transport. Ferry lashings to secure the trailer on the ferry, clearly labelled lashing point and an underride guard with skid ensure the safety and protection of your asset and goods.
    Read more

Overview

Chassis & running gear

  • Chassis
  • Running gear
Chassis
The MODULOS chassis offers greater reserves of power

MODULOS chassis

The MODULOS chassis provides greater reserves of strength with its higher distributed load and optimised weight. A robust trailer frame with single-section roll-formed I-beams provides excellent stability without thermal deformation.
Find out more
Running gear

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.
Learn more
Axle lift for better traction

Lifting axle

The axles of ROTOS® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

Find out more
The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.
Find out more

Body

  • Page
  • Double-decker system
  • Rear
  • Floor
  • Roof
  • $name
  • Height adjustment
Page
Power Curtain - the body without support laths for fast and secure loading and unloading.

POWER CURTAIN

The body is built without support laths for fast and secure loading and unloading. The tarpaulin is equipped with loops for flexible rear load securing combined with comprehensive certification.
Find out more
Access to the freight in seconds with the SPEED CURTAIN

SPEED CURTAIN

When every second counts! The SPEED CURTAIN offers you easy access to your freight in a matter of seconds. Fast and safe loading and unloading with no stanchions or support laths.
Find out more
The standard tarpaulin of the curtainsider is extremely smooth-running

Standard body

The standard curtain used on the curtainsider is extremely smooth-running and so can be opened and closed quickly and easily using only one hand.
Find out more
The dropsides can be combined with a short or long sliding tarpaulin.

Dropsides

Dropsides, either 620 or 720 mm in height, can be combined with a short or long sliding curtain.
Find out more
Interior
High loading volume with the double-decker system for the S.CS curtainsider semi-trailer

Double-decker system

Use the double-decker system to maximise your use of the cargo space with freight that cannot be stacked. With 50 mm spacings, the system can be adapted to the specific load, creating a flexible second loading level.
Find out more
Rear
The double folding doors for the S.CS curtainsider semi-trailer

Double wing door

The anodised aluminium profile rear wall doors are lightweight, durable and corrosion-resistant.
The doors' profile construction means that they can be simply repaired in the event of damage.
Find out more
The continuous combination of bumper and steel bumper strip protect the semi-trailer in the event of impact shocks.

Delta steel ram protection

When it is exposed to impact shocks, the trailer is protected by the steel corner bumpers with continuous delta steel bumper strips. This continuous combination of bumper and steel bumper strip evenly transfers the forces.
Find out more
The rubber bumpers protect the semi-trailer body when approaching the ramp

Standard rubber bumper

As the trailer is approaching a ramp, the rubber bumpers protect the trailer body from damage by bumps, and impact shocks are dampened. The bumpers prevent expensive and time-consuming repairs.
Find out more
The rubber bumpers prevent damage to the rear portal of the curtainsider semi-trailer

Roller corner bumper

Roller corner bumpers compensate for vertical motion during loading and unloading on the ramp. The rubber bumpers prevent damage to the rear portal, protecting the semi-trailer.
Find out more
The trailer body is protected and the impact force is directed into the chassis.

Compression roller bumper

The compressible stainless steel bumpers compensate for vertical movements under load and absorb impact shocks. The trailer body is protected and the impact force is directed into the chassis.
Find out more

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.
Floor
Protection of the rear portal with frequent loading and unloading

Base plates at the rear portal

When a trailer is frequently loaded by forklift, the rearmost base plate is often exposed to increased wear and tear. To protect it, an additional base plate is fitted at the rear portal, extending the service life of the trailer.
Find out more
High stacker axle load and a permanently elastic adhesive bonding of the floor

Glued floor

Permanently elastically bonded floors are load-bearing and protect the freight from the effects of weathering from below. As well as providing a watertight and sealed loading surface, the bonded floor also provides for a higher stacker axle load.
Find out more
S.CS curtainsider semi-trailer wooden floor for different stacker axle loads

Wooden floor

Robust and durable perforated floors for various stacker axle loads are available. The floor plates are sealed to prevent moisture from reaching the freight from below.
Find out more
Non-slip floor increases the safety of goods and prevents slipping

Non-slip floor

The non-slip floor with plastic coating keeps the load in place. Load securing is easier with a higher coefficient of sliding friction.
Find out more
Roof
The lifting roof raises the side through-loading height

Lifting roof

And for convenient loading and unloading, the roof can be raised to increase the side through-loading height, enabling simple loading. This prevents damage to the load and roof.
Find out more
The inflated Roof Safety Airbag aids safety in road traffic

Roof Safety Airbag

The Roof Safety Airbag (RSAB) improves safety in traffic. When inflated, the RSAB creates a bulge in the roof, causing water to run off and preventing ice formation in winter.
Find out more
Excellent body strength with the Schmitz Cargobull Safety Roof

Safety Roof

The standard Safety Roof also contributes to the strength of the trailer body. The Safety Roof can be slid forward or backwards and stopped in an open position for loading and unloading by crane.
Find out more
Anti-theft protection in the tarpaulin prevents unwanted access to the freight

Anti-theft protection in the roof

Safely and securely to your destination. The optional wire mesh anti-theft protection in the roof prevents it from being cut, protecting against theft and unwanted penetration.
Find out more

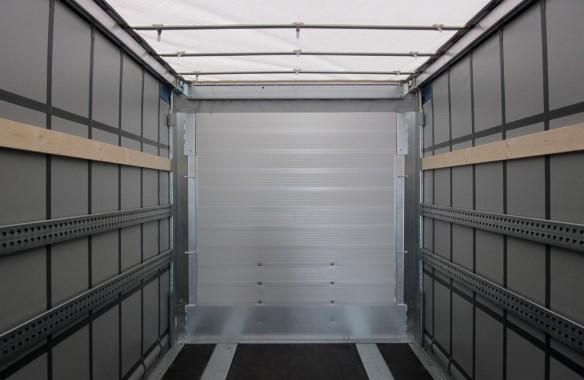

Bulkhead

Bulkhead

Bulkhead with lashing eyes on the inside of the corner profiles for simplified load securing.
Find out more
Height adjustment

VARIOS

Use the height-adjustable TÜV Centre-certified body flexibly with different coupling heights. If required, the load volume grows with your requirements, while always remaining below the permitted overall height
Find out more

Assist systems

  • Tyre pressure systems
  • Brake pad wear indicator
  • Flashing side marking lights
  • Electronic ramp approach aid
Pressure monitoring system
Control and timely information on tyre pressure with the tyre pressure system

Tyre re-pressurisation system

The tyre re-pressurisation system checks the tyre pressure and automatically inflates the tyre if required. This results in lower tyre wear and improved driving characteristics.
Find out more
The Schmitz Cargobull tyre pressure control system.

TPMS with autolocation

The tire pressure monitoring system indicates when you need to top up the air in a tire. With autolocation the sensor is assigned to the correct tyre position. The Schmitz Cargobull sensor learns independently and records the tyre pressure and tyre temperature data. With the correct tire pressure, the tires wear less and you save fuel due to the improved rolling resistance.
Find out more
Brake pad wear indicator
Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Find out more
Flashing side marking lights
Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash, signalling to other road users that the vehicle is about to turn.
Find out more
Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.
Find out more

Load securing

  • Restraint
  • Lashing points and aids
  • Non-slip floor
Restraint

Flexible load securing system

The flexible load securing system stands out on account of its high test forces. Its ease of handling is impressive and it can be flexibly positioned within the trailer.
Recessed load securing loops in the POWER CURTAIN

Load securing loops

The curtain loops integrated in the POWER CURTAIN curtain provide flexible load securing options with excellent blocking forces, while being easy to use.
Find out more
Rear interlocking load securing

Mobile front wall

The mobile front wall enables loads to be secured to the rear. The cross-beam is locked in the continuous lashing holes and can be flexibly used over the entire length of the trailer.
Find out more

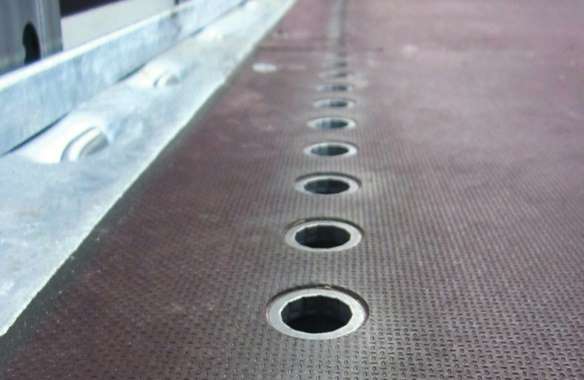

Floor securing sleeves

Floor securing sleeves

Floor securing sleeves permanently screwed into the floor provide for load securing with locking bars and safety wedges.
Find out more
Spacer slats ensure lateral form-fitting loading

Spacing slats

Spacing slats are folded up so that they interlock along the sides for the transportation of well pallets or octabins.
Find out more
Stanchions inserted into the floor provide for form-fitting load securing

Stanchion pockets

The stanchions inserted in the floor can be used for form-fitting loading, providing yet another flexible load securing option. They efficiently secure in place longer materials, among other things.
Find out more
Lashing points and aids
Lashing eyes with a pulling force of up to 5 tonnes

Lashing eyes

The lashing eyes, with a pulling force of up to 5 tonnes, provide flexible load securing points. They fit all common hooks for fast load securing, and chains can also be locked in them.
Find out more
Lashing holes to fit all popular hooks to efficiently secure your load

Full-length lashing holes

These standard lashing holes in the outer frame or optionally in the pallet stop mean that your load can be very quickly, efficiently and flexibly secured. The lashing holes fit all popular hooks.
Find out more
Individual load securing and no need to climb over the goods

Sliding lashing system

The system, which fits between the roof beams, provides for individualised load securing, simplifying goods handling for all operators involved as there is no need to clamber over the goods.
Find out more
Non-slip floor
Non-slip floor increases the safety of goods and prevents slipping

Non-slip floor

Load securing is made easier with the certified non-slip floor with black plastic coating. Your load stays in a fixed position and loose non-slip mats are now a thing of the past.
Find out more

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 1264 Code XL

    Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
    Read more

  • Beverages

    Trailer bodies that confirm to DIN EN 12642 Code XL with the addition "suitable for beverage transport" meet the special requirements governing well pallets and drums. Suitable for one- or two-layer beverage transport.
    Read more

  • M-B Directive 9.5

    Mercedes-Benz AG has its own separate directive for binding load securing methods for the correct and proper transport of goods to and from its factories. The Mercedes-Benz Directive 9.5 is increasingly used for all transportation work in the automotive sector.
    Read more

  • VDI 2700

    S.CS curtainsider semi-trailers comply with the load securing requirements of Directive VDI 2700, whether for the transport of packaged goods, beverages, paper or steel.
    Read more

  • Tyres

    Loose tyres that need to be transported interlocked with each other settle when they are transported and press heavily against the side walls. Body stability is ensured with additional fittings in accordance with DIN EN 12642 Code XL.
    Read more

  • Octabin

    The certificate for obctabin transport for the chemical industry. Special clamping beams and octabin reversible slats effectively secure goods from slipping longitudinally and laterally.
    Read more

Technical data

  • Internal body length13.62 / 15m
  • Intenal body width2,480mm
  • Internal body height*up to 3,050mm
  • Pallet spaces34 / 37 / 40Euro pallets
* depending on the coupling height and the statutory conditions.

Our services

Service contracts

The right service contract gives you full control over the costs and we make sure that you stay mobile!
More about:Service contracts
Service Partners keep you mobile and minimise your downtimes.

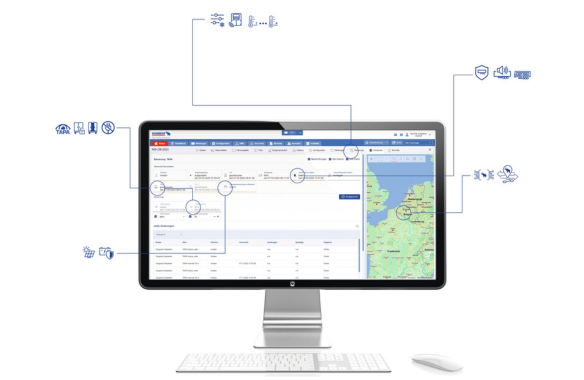

Telematics
