S.KO COOL

S.KO COOL

The pharmaceutical industry has complex regulations, especially when it comes to transporting medication. The S.KO COOL fulfils these requirements and the Trailer Connect® telematics functions ensure that you always have an eye on your sensitive freight.
Box body semi-trailer S.KO COOL SMART

Your benefits

  • Modular system for individual trailer configuration, e.g. simplified load securing with multifunctional floor, double-decker system and load securing rails.
    Read more
  • TrailerConnect®-Telematik for the transparent control of your fleet of trailers
    Read more
  • Vapour diffusion-tight, ageing-resistant and shatter-proof box body with FERROPLAST® thermal technology
    Read more
  • Efficient cooling, thanks to specially optimised air guidance
    Read more
  • Ease of cleaning, due to liquid-tight welded floor pan and flush-fitting attachments for optimum hygiene in the trailer.
    Read more

Equipment packages

  • Cross-border transport

    The TIR equipment package for even greater safety and comfort in cross-border goods transport. Just what you need when you want to get through the border crossing with shorter waiting times.
    Read more

  • Ferry equipment

    Safe and sound on the open seas with ferry equipment for accompanied and unaccompanied transport. Ferry lashings to secure the trailer on the ferry, clearly labelled lashing point and an underride guard with skid ensure the safety and protection of your asset and goods.
    Read more

Overview

Chassis & running gear

  • Chassis
  • Running gear
Chassis
MODULOS short chassis for the S.KO box body semi-trailer

MODULOS chassis

The FERROPLAST® thermal technology box body is self-supporting and warp-resistant. Thanks to their bolted connections, the individual components of the MODULOS trailer chassis can be easily replaced. Corrosion protection is maintained by the galvanised parts.
Find out more
Running gear

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.
Learn more
Axle lift for better traction

Lifting axle

The axles of ROTOS® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

Find out more

Body

  • Double-decker system
  • Rear
  • Floor
  • Roof
Interior
Loading volume with the double-decker system for the S.KO box body semi-trailer

Double-decker system

Flexible and higher utilisation of the trailer's capacity, thanks to its double-decker system. Ideal for freight that cannot be stacked. The system provides for gap-free loading using two infinitely height-adjustable split levels.
Find out more
Rear

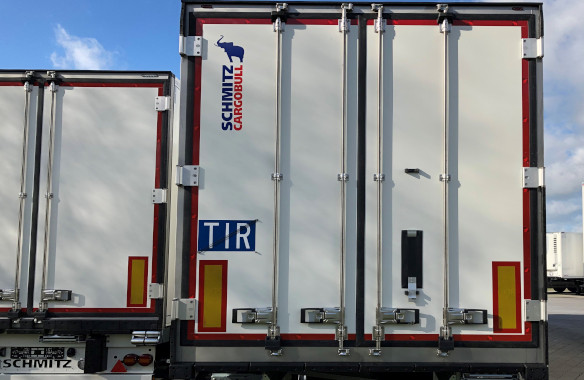

Double folding doors made of FERROPLAST? panels for the S.KO box body semi-trailer

Double wing door

Maximum safety and optimum insulation, thanks to FERROPLAST® rear doors. With single or double locking, depending on transport requirements and trailer dimensions.
Find out more

Dynamic Ramp Protection

The system protects the body when the trailer reverses up to a ramp. At the same time, stainless steel roller bumpers compensate for the trailer's change of height when it is approached by a forklift.
Find out more

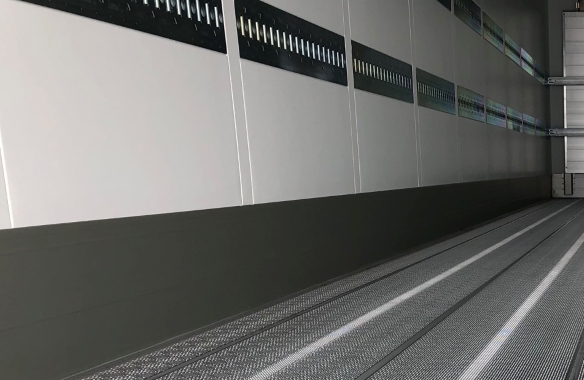

Scuff plates protect the floor and side walls from wear

Scuff rail

The scuff rail welded to the floor protects the side walls from damage. Insulation quality is unaffected, as there are no screw or rivet joints.
Find out more
Floor

Multi-functional floor

The floor has a significantly longer service life than conventional floors, while also being lighter and more slip-resistant. Vertical clamping beams can be inserted directly into the recessed load securing profiles.
Roof
S.KO box body semi-trailer Ferroplast roof

FERROPLAST® roof

The standard FERROPLAST®-insulated roof comes in various versions, ensuring excellent fuel efficiency and outstanding insulation.
Find out more

Temperature-controlled transport

  • MultiTemp equipment
  • Cooling unit
MultiTemp equipment

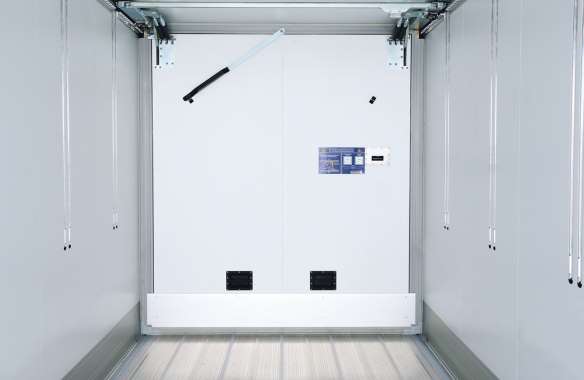

Mobile partition for sub-division into different temperature zones

Mobile partition

When transporting refrigerated products, often multiple temperature zones need to be set up within the trailer. Mobile partitions enable the trailer interior to be divided into different temperature zones.
Find out more

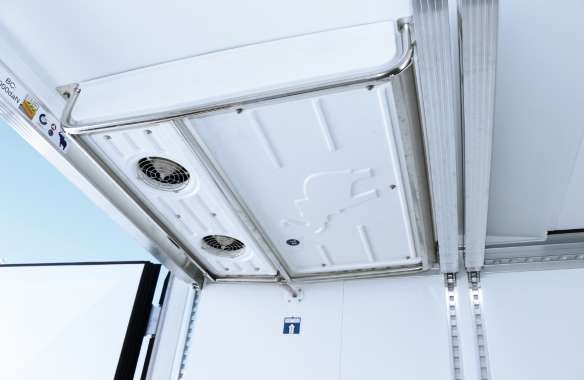

Standards in MultiTemp transport with the additional roof evaporator

Additional roof evaporator

The roof evaporator is setting new benchmarks with its performance and compact design. Its flat construction and minimal width offers greater loading height under the unit.
Find out more
Cooling unit
MonoTemp and MultiTemp version of the S.CU transport cooling unit

S.CU transport cooling unit

The MonoTemp and MultiTemp versions of the S.CU cooling unit delivers optimum cost-effectiveness. Precise temperature management, thanks to sensitive control, low fuel consumption and long maintenance intervals.
Find out more

Assist systems

  • Door locking system and door contact sensor

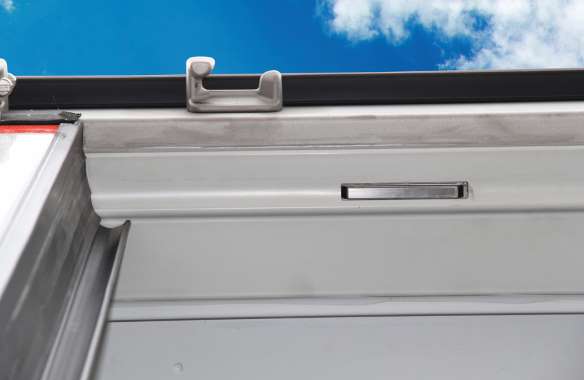

Door locking system and door contact sensor
Protection from unauthorised access with control via the TrailerConnect® portal

Door locking system and door contact sensor

The door sensor detects whether the rear doors are open or closed. With the aid of the door locking system, the rear doors can be remotely locked or unlocked via the TrailerConnect® portal or the beSmart app.
Find out more

Load securing

  • Restraint
Restraint

Load securing beams

Unpalletised freight can be secured by means of flush-mounted load securing rails. Load securing protection beams can be suspended as required, enabling the interior to be freely used.

Load securing rail

The flush-mounted load securing rail prevents damage to the load.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 1264 Code XL

    Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
    Read more

  • ATP certification

    Our trailers comply with ATP Class FRC or FNA, depending on the application and equipment options, to prove that the refrigeration chain remains intact during transport.
    Read more

  • HACCP

    Our trailers are uncompromising when it comes to hygiene for food and pharmaceutical transport. Their interiors comply with the most stringent HACCP cleanliness and hygiene requirements.
    Read more

  • Pharmaceutical transport

    Trailers need to meet certain requirements to carry sensitive pharmaceutical products. A badge with pharmaceutical certificate proves that the trailer meets these requirements.
    Read more

Technical data

  • Internal body length13.4 / 14.7 / 16.8m
  • Intenal body width2,460 or 2,490mm
  • Internal body height*2,350-3,050mm
  • Pallet spaces33 / 36 / 41Euro pallets
* depending on the statutory requirements and the individual semi-trailer specification.
