EcoGeneration
Benefits of the EcoGeneration
For fuel savings and reduction of CO2 emissions
-
Everything in viewTelematics can also monitor the height adjustment of the trailer, i.e. sensors detect whether the roof is raised or in an aerodynamic position.Read more
-
Aerodynamic bodyThe aerodynamic shape, reducing drag and saving fuel.Read more
-
New interior lightingThe interior is now even better illuminated and ensures greater safety when loading and unloading at any time of day or night.Read more
-
Fuel saving
The aerodynamic trailers of the EcoGeneration significantly reduce air resistance and thus fuel consumption.
In practical use, fuel savings of more than 10 % have been achieved with the EcoGeneration concept.Read more -

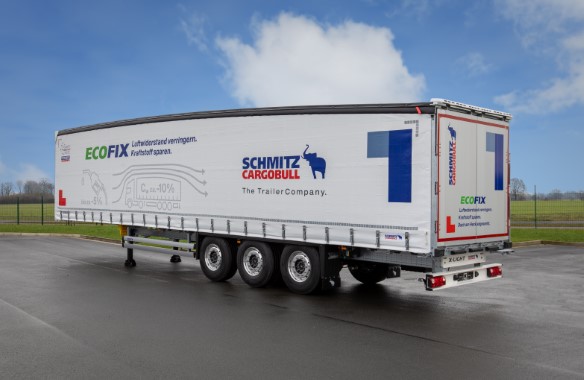

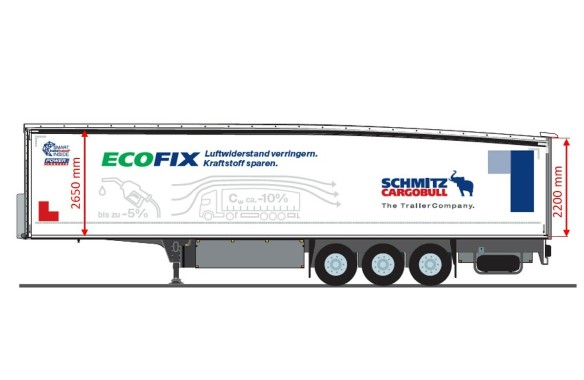

Design variantsEcoFIX - fixed lowered rear roof

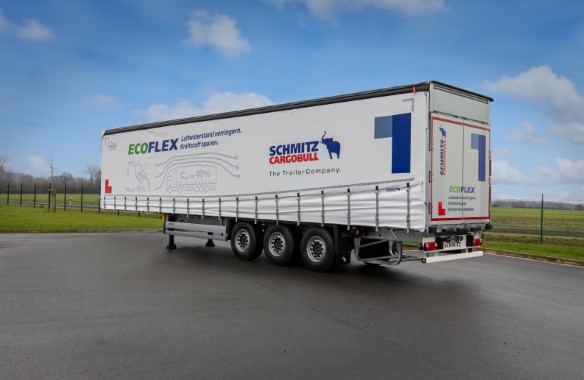

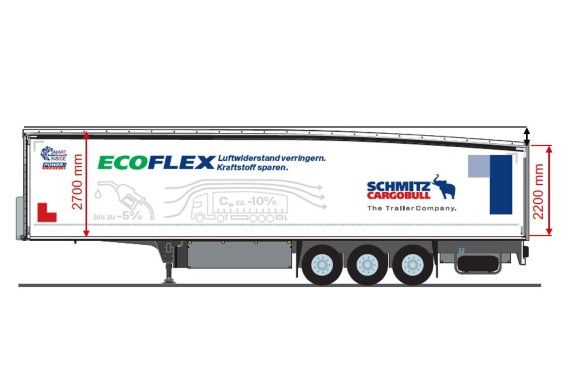

EcoFLEX - flexible adjustable rear roof

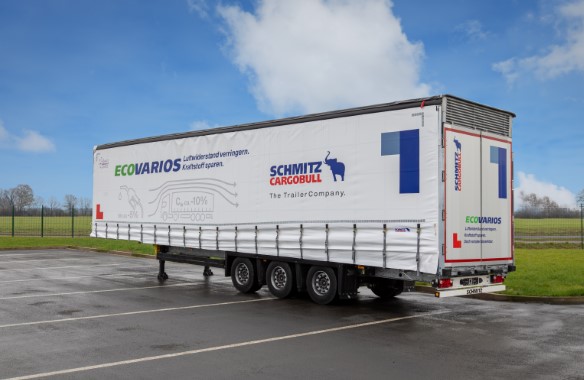

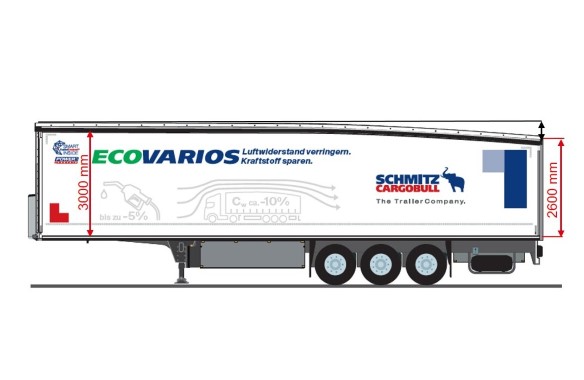

EcoVARIOS - flexible adjustable rear and front roof for volume transportRead more -
Curtain selectionDepending on the transport task, the EcoFIX can be fitted with the standard curtain or the lath-free POWER CURTAIN body.Read more
-
Simple, familiar and proven handling
Adjustable rear roof within minutes. The height adjustment on the EcoFLEX and EcoVARIOS is based on our well-known lifting roof technology combined with our VARIOS height adjustment system. Adjustments can be made without any additional tools.
Read more -
Flexible adaptation to the loading volumeStill flexible: If the full interior volume is required, the rear roof height can be easily adjusted.Read more
Vehicles
Handling
Simple and quick height adjustment
Minimal steps, known handling, no additional tools required.
1. Open doors and fold up rear bow
2. Release curtain hump and curtain
3. Adjust the lifting roof by using the hydropneumatic pump
4. Adjust the required inner height on the stanchions.
5. Adjust the lifting roof
6. Simply adjust and close the height of the curtain
7. Close rear bow and doors
Load securing
Aerodynamic
The Eco-Modus gives the vehicle an aerodynamic shape, resulting in a reduction of air resistance, a smaller towing area and less turbulence behind the trailer.
With the adjustable rear, the EcoFLEX and EcoVARIOS can be flexibly adapted to full load volume if required.
In practical use, fuel savings of more than 10 % have been achieved with the EcoGeneration concept.
FAQ
-
How quickly do the fuel savings become noticeable?The effects are directly measurable. The EcoGeneration vehicles save up to 10% fuel.
-
What certificates do the Eco range meet?As with the standard vehicle, the Eco vehicles also comply with all current certificates. The body technology of the Eco bodies is similar to that of the standard trailers.
-
Are any additional tools needed to make the height adjustments?No, adjustments can be easily made and integrated into the daily transport routine within just a few minutes.
-
How does loading and unloading work with the Eco vehicles?Loading and unloading of the Eco vehicles is exactly the same as for the standard vehicles. Both rear and side loading are still possible.
Only with the EcoFLEX and EcoVARIOS is it necessary to fold up the rear bar when loading from the rear in order to prevent damage to the vehicle. The load is secured using the standard Schmitz Cargobull systems. -
Are there any special features of the chassis?The well-known MODULOS chassis is used. For a particularly low empty weight, the Eco body can be combined with an X-LIGHT chassis.
-
Can the bodies be combined with Schmitz Cargobull telematics?Yes, of course. All curtainsider semitrailers will be equipped with the TrailerConnect® telematics CTU as standard from the beginning of 2021.
-
What are the rules for repair and maintenance of the Eco vehicles?
Like standard vehicles, the Eco range assets are equipped with Schmitz Cargobull's MODULOS chassis. This means the vehicles are robust, have high corrosion protection, are flexible to transport tasks and come with a 10-year warranty against rust-through.
Vehicle functionality is based on technical aspects of previous assets and standard maintenance is required. The functionality of the height adjustment is based on our VARIOS technology, therefore no restrictions or costly repairs are to be expected.
