S.KOe CITY

S.KOe CITY

Emission-free delivery in city centres thanks to the fully electric cooling unit, high-voltage battery and generator axle. The steering axle of the S.KOe CITY box body semi-trailer provides the necessary manoeuvrability for deliveries to food retailers in city centres. Narrow streets, access roads or loading yards can be negotiated without losing time thanks to the mechanical forced steering.

Your benefits

  • Emission-free transport

    S.CU ep85 electric cooling unit with up to

    15,800 watts cooling capacity and 10,500 watts heating capacity.

    Read more
  • Extremely manoeuvrable
    Steering axle with mechanical forced steering enables manoeuvrability even in narrow streets, access roads and loading yards.
    Read more
  • Flexible length
    Various length versions and shortest version with only 11 metres and space for 27 Euro plates.
    Read more
  • High transparency
    TrailerConnect® telematics system for the transparent control of your fleet of trailers.
    Read more
  • Optimum hygiene
    Ease of cleaning, due to liquid-tight welded floor pan and flush-fitting attachments for optimum hygiene in the trailer.
    Read more
  • Additional security
    Reversing camera and LED work lights for extra safety when reversing, docking on the ramp and manoeuvring.
    Read more
  • Efficient handling

    Fully insulated roller shutter door with XL certificate in accordance with EN-12624 is ATP-FRC certified for optimised and efficient handling during loading and unloading.

    Read more

Equipment packages

  • Cross-border transport

    The TIR equipment package for even greater safety and comfort in cross-border goods transport. Just what you need when you want to get through the border crossing with shorter waiting times.
    Read more

  • Ferry equipment

    Safe and sound on the open seas with ferry equipment for accompanied and unaccompanied transport. Ferry lashings to secure the trailer on the ferry, clearly labelled lashing point and an underride guard with skid ensure the safety and protection of your asset and goods.
    Read more

Overview

Chassis & running gear

  • Steered axle
  • Running gear

Battery Power Pack

Battery Power Pack with a capacity of 32kW/h. The lithium iron phosphate battery transformer has a self-sufficient running time of approx. 4.5-18h and requires approx. 2h for a full charge.
Find out more

E-axle

E-axle recharges the battery generatively and recuperatively while driving and thus prevents downtimes during operation.
Find out more

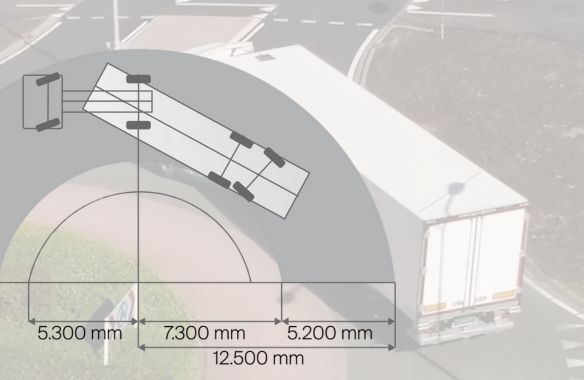

STEERED AXLE

Steered axle

A mechanical steering system which is used primarily in distribution transport. This system steers the rear axle of a one, two or three axle trailer.
Find out more
Body
Axle lift for better traction

Liftable axle

ROTOS running gears can be optionally equipped with an axle lift function. The axle lift and the starting aid increase efficiency, driving safety and traction and reduce tire wear.

Find out more

Body

  • Page
  • Double-decker system
  • Rear
  • Floor
  • Roof
Side
Fast loading and unloading through the side door in the S.KO box body semi-trailer

Side door

A good alternative to partial loads with multi-temperature transport with a partition. The side door enables the trailer to be partially unloaded and provides access to individual MultiTemp chilled zones.
Find out more
Interior
High loading volume with the double-decker system.

Double-decker system

Flexible and higher utilisation of the trailer's capacity, thanks to its double-decker system. Ideal for freight that cannot be stacked. The system provides for gap-free loading using two infinitely height-adjustable split levels.
Find out more
Rear
Protection of the rear with standard rubber bumpers.

Standard rubber bumper

As the trailer is approaching a ramp, the rubber bumpers protect the trailer body from damage by bumps, and impact shocks are dampened. The bumpers prevent expensive and time-consuming repairs.
Find out more
Roller corner bumpers even out loads at the rear

Roller corner bumper

Roller corner bumpers compensate for vertical motion during loading and unloading on the ramp. The rubber bumpers prevent damage to the rear portal, protecting the semi-trailer.
Find out more

Dynamic Ramp Protection

The system protects the body when the trailer reverses up to a ramp. At the same time, stainless steel roller bumpers compensate for the trailer's change of height when it is approached by a forklift.
Find out more
Double folding doors made of FERROPLAST? panels for the S.KO box body semi-trailer

Double wing door

Maximum safety and optimum insulation, thanks to FERROPLAST® rear doors. With single or double locking, depending on transport requirements and trailer dimensions.
Find out more
Insulated roller shutter for the S.KO box body semi-trailer

Roller shutter

The insulated roller shutter ensures that there is no more lost time or lost refrigeration, as the trailer can be opened once it has reached the ramp.
Find out more

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.
Find out more
Fast unloading even without a ramp with a tail lift for the S.KO box body semi-trailer

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.
Find out more
Floor

Multi-functional floor

The floor has a significantly longer service life than conventional floors, while also being lighter and more slip-resistant. Vertical clamping beams can be inserted directly into the recessed load securing profiles.
Roof
S.KO box body semi-trailer Ferroplast roof

FERROPLAST® roof

The standard FERROPLAST®-insulated roof comes in various versions, ensuring excellent fuel efficiency and outstanding insulation.
Find out more

Temperature controlled transport

  • Cooling unit
  • Air distribution
  • MultiTemp equipment
  • Strip curtain
Cooling unit

Electric cooling - S.CUe

The S.CUe is the electric cooling unit for the S.KOe COOL and S.KOe CITY. 100% output with zero emissions, specially developed for inner-city distribution transport.
Find out more
Air distribution
Air ciruclation within the trailer

Air chute system

Efficient cooling, due to optimised air distribution. Three flexible cooling ducts provide for the required distribution of cold air. If partition walls are used, several temperature zones can be produced without additional handling.
Find out more
Tensioned cold tarpaulin in the S.KO box body semi-trailer for air distribution in MonoTemp transport

Cold tarpaulin

The tensioned cold tarpaulin suspended under the roof guarantees even distribution of cooled air. The cold tarpaulin is specifically designed for MonoTemp transport.
Find out more
Optimum air circulation through the air circulation wall

Air circulation wall

The circulation wall guarantees a continuous circulation of air, optionally available as a swivel version. Integrated rear latches optimise air circulation.
Find out more
MultiTemp equipment

Longitudinal partition wall

Longitudinal partition walls with variable end sections enable different sizes of additional temperature zones to be created quickly and simply. The temperature can therefore be maintained in the individual temperature zones, even with frequent loading and unloading.
Mobile partition for sub-division into different temperature zones

Mobile partition

When transporting refrigerated products, often multiple temperature zones need to be set up within the trailer. Mobile partitions enable the trailer interior to be divided into different temperature zones.
Find out more
Standards in MultiTemp transport with the additional roof evaporator

Additional roof evaporator

The roof evaporator is setting new benchmarks with its performance and compact design. Its flat construction and minimal width offers greater loading height under the unit.
Find out more
Strip curtain
Strip curtains at the rear prevent the loss of cold air

Strip curtain

Variable strip curtains, which can be moved lengthwise, guarantee enhanced goods safety while reducing fuel use, as less cooled air is lost through open doors with partial loads.
Find out more

Assistance systems

  • Audible sound for safety
  • Fuel indicator with LED display
  • Flashing side marking lights
  • Electronic ramp approach aid
Audible sound for safety

Ried White Sounds

The reversing warning system – Ried White Sounds –prevents accidents by warning anyone in a vehicle’s path that it is moving backwards. This system uses a wide range of white sound frequencies, which give greater directional information to the ear, enabling   listeners to instantly locate where and what direction the sound is coming from.
Find out more
Fuel indicator with LED display
LED tank display enables the fuel level to be read off

Fuel indicator with LED display

The fuel level of the cooling unit can always be clearly read on the tank LED display.
Find out more
Flashing side marking lights

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash and signal to other road users that the vehicle is about to turn.
Find out more
Electronic ramp approach aid
Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.
Find out more

Load securing

  • Restraint
  • Lashing points and aids
Restraint
Recessed load securing rail in the M.KO truck box

Load securing rail

The flush-mounted load securing rail prevents damage to the load.
Find out more
Lashing points and medium
S.KO COOL lashing eyes

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.
Find out more
Truck Bodies load securing belts

Load securing belts

Load securing belts can be flexibly used with partial loads to prevent them from slipping or toppling over.
Find out more

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 12642 Code XL

    Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
    Read more

  • ATP certification

    Our trailers comply with ATP Class FRC or FNA, depending on the application and equipment options, to prove that the refrigeration chain remains intact during transport.
    Read more

  • HACCP

    Our trailers are uncompromising when it comes to hygiene for food and pharmaceutical transport. Their interiors comply with the most stringent HACCP cleanliness and hygiene requirements.
    Read more

  • PIEK

    They meet the exacting PIEK criteria for deliveries in urban areas to reduce noise at night.
    Read more

Technical data

  • Internal body length11 / 12.3 / 13.4m
  • Intenal body width2,460 or 2,490mm
  • Internal body height*2,350 - 3,000mm
  • Pallet spaces27 / 30 / 33Euro pallets or 26 ISO pallets
* depending on the statutory requirements and the individual semi-trailer specification.
