POWER CURTAIN
Short loading times are crucial in the logistics sector to increase turnaround speed and efficiency. Schmitz Cargobull. S.CS curtainsider semi-trailers or M.CS/Z.CS high-volume truck body and trailer combinations with POWER CURTAIN deliver these requirements. The structural rigidity of the body is certified to DIN EN 12642 Code XL and is achieved with a high-strength tarpaulin with aramid belts and integrated steel wires.
Your benefits
-
The special requirements for side walls and load securing for the transport of loose and pretzelled tyres are now also fulfilled and certified.Read more
-
The high strength of the sidewall, in the construction for the tyre certificate for the S.CS, is generated by an easy-to-use lever mechanism that brings pre-tension into the curtain.Read more
-

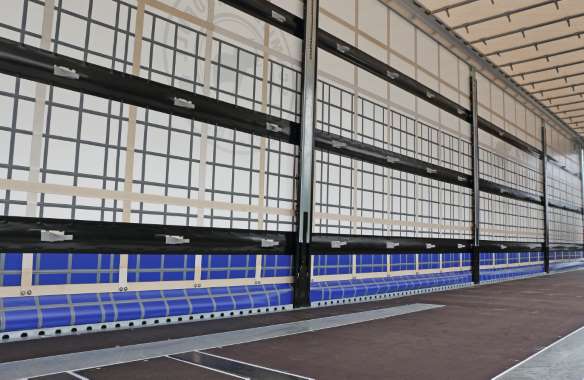

No support laths, therefore easier to use and greater safety when loading and unloading.Read more
-

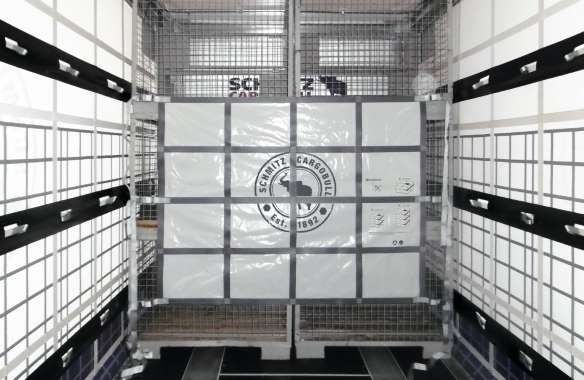

Rear load securing even with partial loads. Fast, simple and correct securing by suspension in the tarpaulin loops.Read more
-
Lath-free body helps to cut running costs. No loss of support laths, no damage, lower risk of injury.Read more
-
Shorter loading and unloading times compared to the S.CS curtainsider semi-trailer with standard bodyRead more
-
Cost-effective alternative to the SPEED CURTAIN.Read more
-
High-strength side tarpaulins for anti-theft protection, protection against unauthorised access to the goods and malicious cutting of the tarpaulin.Read more
-
Good structural rigidity of the body in standard version, certified to DIN EN 12642 Code XL and DL Directive 9.5 together with a Beverage Certificate.Read more
-
Suitability for all operations provides greater transport efficiency.Read more
Handling

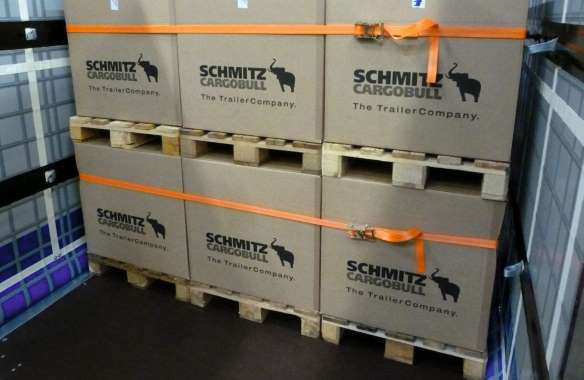

Strong - Efficient rear load securing - even with partial loads of up to 7,500 daN - due to the loops integrated in the tarpaulin.
Flexible - Three rows of loops integrated in the tarpaulin provide for flexible load securing approximately every 60 cm. The loops can be easily reached at different points in the trailer.
POWER CURTAIN PLUS
Comprehensively certified - also for tyre transport and other goods which are not suitable for positive Transport the side tarpaulin strong burden. The strength of the POWER CURTAIN PLUS, for the curtainsider semi-trailer S.CS, is determined by an easy-to-use lever mechanism of the supporting bars which applies pre-tension to the tarpaulin.
Comprehensively certified - also for tyre transport and other goods which are not suitable for positive Transport the side tarpaulin strong burden. The strength of the POWER CURTAIN PLUS, for the curtainsider semi-trailer S.CS, is determined by an easy-to-use lever mechanism of the supporting bars which applies pre-tension to the tarpaulin.
Load securing

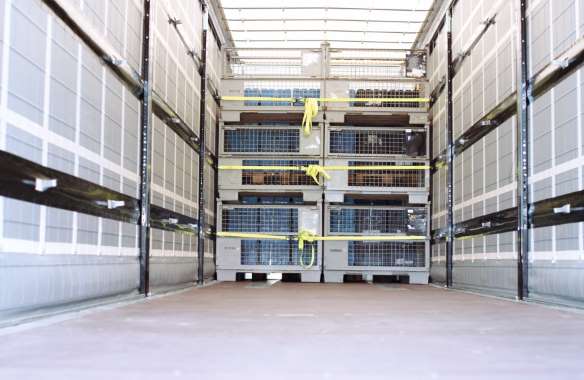

Efficient securing even with partial loads or with form-fitting loading, with no need for additional equipment.
Well thought-out, certified structural rigidity of the body
-
The POWER CURTAIN body is reinforced with aramid belts on the S.CS curtainsider semi-trailer. Aramid is low-stretch and is even used to fabricate bullet-proof vests.Read more
-
The POWER CURTAIN consists of a reinforced tarpaulin made of high-strength material.Read more
-
With shorter vehicles, such as the M.CS/Z.CS high-volume truck body and trailer combination, the body is supported by vertical and horizontal reinforcements.Read more
-
Both bodies feature integral anti-theft protection.Read more
-
Optionally the POWER CURTAIN provides a flexible load securing system for partial loads with blocking forces of up to 7,500 daN.Read more
-
The high strength of the sidewall, in the construction for the tyre certificate, is demonstrated by an easy to use lever mechanism of the supporting bars that brings pre-tension into the tarpaulinRead more
Road test in accordance with DIN EN 12642 Code XL
The trailer body's DIN EN 12642 Code XL certificate provides that it can be secured by the side tarpaulins without the need for additional restraints when the load is form-fitted.
-
Safety has top priority at Schmitz Cargobull - all bodies are certified to DIN EN 12642 Code XL.Read more
-
These tests are often supervised by official approved test institutes who then issue load securing certificate.Read more
-
Even the POWER CURTAIN has undergone extensive testing. In test drives, the body is exposed to critical loads to simulate extreme everyday situations.Read more
-
See our testing procedure and the forces that the tarpaulin is proven to withstand.Read more
Safety at a glance
A copy of the DIN EN 12642 Code XL certificate is located on the inside of the rear door of the S.CS curtainsider semi-trailer and M.CS/Z.CS high-volume truck body and trailer combination, both fitted with a POWER CURTAIN.

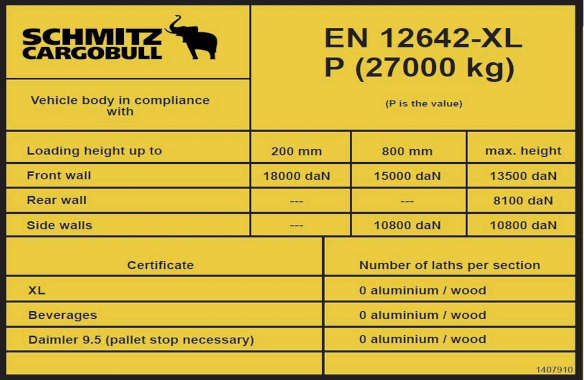

Badges are additionally affixed to the front and rear wall as evidence that the structural rigidity of the body complies with DIN EN 12642 Code XL.
The badge for the S.CS curtainsider semi-trailer includes the following information:
- Details of the test loads at different loading heights
- Required number of support laths: "0".
- The POWER CURTAIN does not require support laths.
Certificates
Comprehensive certifications for your safety in day-to-day transportation work.
DIN EN 12642 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.Read moreM-B Directive 9.5
Mercedes-Benz AG has its own separate directive for binding load securing methods for the correct and proper transport of goods to and from its factories. The Mercedes-Benz Directive 9.5 is increasingly used for all transportation work in the automotive sector.Read moreBeverages
Trailer bodies that confirm to DIN EN 12642 Code XL with the addition "suitable for beverage transport" meet the special requirements governing well pallets and drums. Suitable for one- or two-layer beverage transport.Read moreTyres

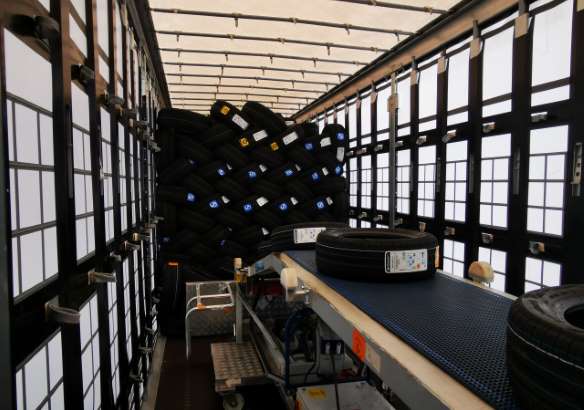

Loose tyres that need to be transported interlocked with each other settle when they are transported and press heavily against the side walls. Body stability is ensured with additional fittings in accordance with DIN EN 12642 Code XL.Read more
Our services
Media
-
S.CS POWER CURTAIN curtainsider semi-trailer - Short information
