Swap chassis A.WF MIL and Z.WF MIL

Trailer swap bodies AWF 18 MIL for the transportation of swap bodies and containers 10-20ft and ZWF MIL for the transportation of swap bodies and containers 10ft

Your benefits

A.WF 18/L-20’ MIL

Painting according to specification TL-A 0003
Read more
Robust two-axle chassis made of steel with long service life
Read more
Wide range of equipment variants and options perfectly adapted to military purposes
Read more
Specific lighting equipment for military use
Read more
Container locks for 1 x 10' ISO centered and 2 x 10' as well as
Read more
Tested according to military requirements
Read more
Grounding screw, loss-proof (marked according to VDE)
Read more
1 x 15' or 1 x 20' swap bodies/containers
Read more
Brackets to accommodate 12 camouflage net poles*
Read more
Lashing and fastening devices for rail, ship and air transport
Read more
Tyre pressure monitoring system according to ECE-141**
Read more

Z.WF 5 10’ MIL

Robust central axle chassis made of steel with long service life
Read more
Grounding screw, loss-proof (marked according to VDE)
Read more
Locking arrangement to accommodate 10' containers or TÜM modules
Read more
Brackets to accommodate 12 camouflage net poles*
Read more
Lashing and fastening equipment for rail, ship and air transportation
Read more
Tyre pressure monitoring system according to ECE-141**
Read more
Specific lighting equipment for military use
Read more
Tested according to military requirements
Read more
Painting according to specification TL-A 0003
Read more

Two-axle swap chassis A.WF MIL
Central axle swap chassis Z.WF MIL

Two-axle swap chassis A.WF 18/L-20' MIL

Chassis
Attachments

The Chassis

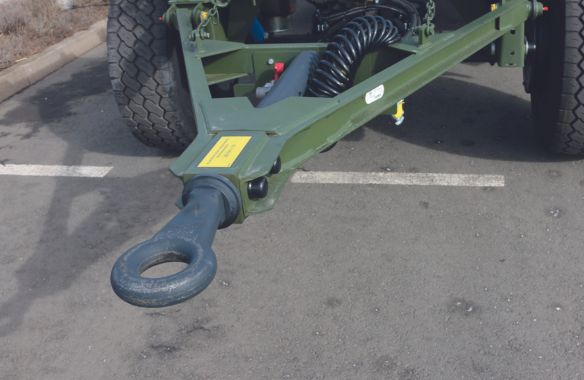

Drawbar

Drawbar according to DIN 74040 with exchangeable NATO drawbar eye according toVG 74059 (drawbar tube extendable by 6 x 100mm).

Find out more

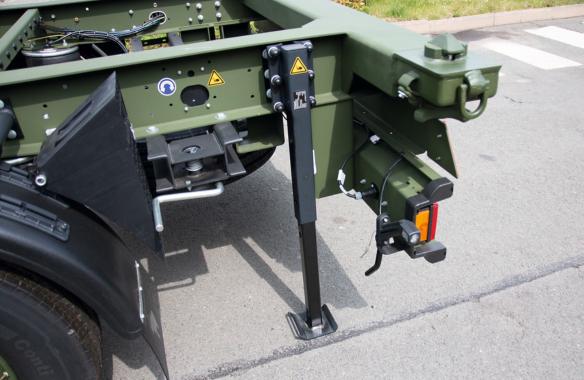

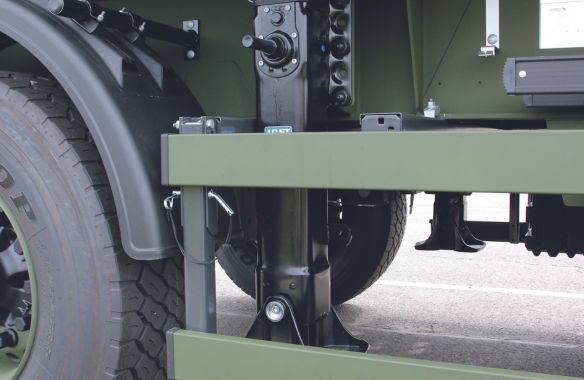

Four steady legs

Four steady legs on the chassis for stable off-road positioning.

Find out more

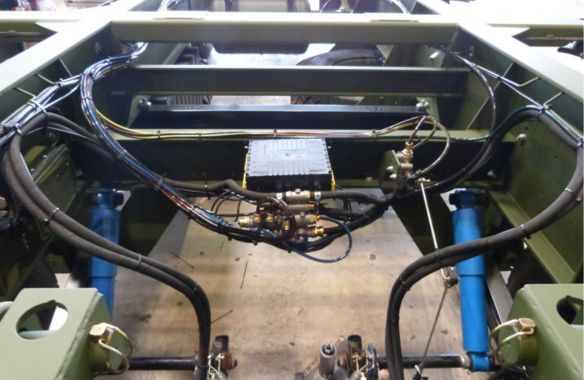

EBS control unit

EBS control unit (electronic braking system) located centrally in the chassis for fording depth at ride height approx. 950 mm.

Find out more

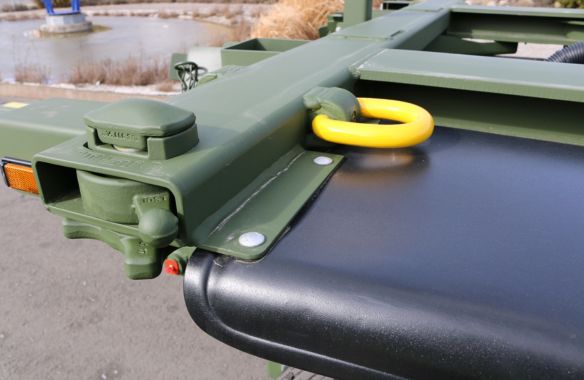

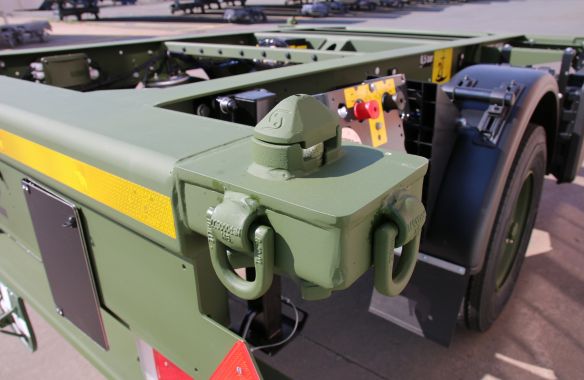

Container locking

Container lock with anti-rotation device, retractable for driving underneath the swap bodies. Optionally also available in KTL black.

Find out more

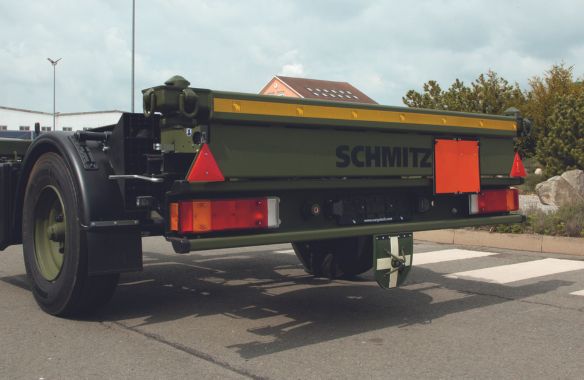

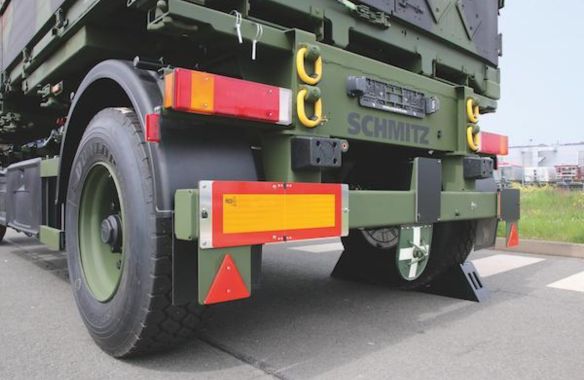

Lighting system

7 Chamber light with LED side marker lights coupled with turn signal, camouflage tail light and camouflagebrake light, guide cross with light, lashing andfastening equipment for rail, ship and airtransport.

Find out more

Bogie

Bogie with low-maintenance ball bearing slewing ring and optimum, protected feed-through of the cables through the frame.

Find out more

Military products A.WF Schmitz Cargobull

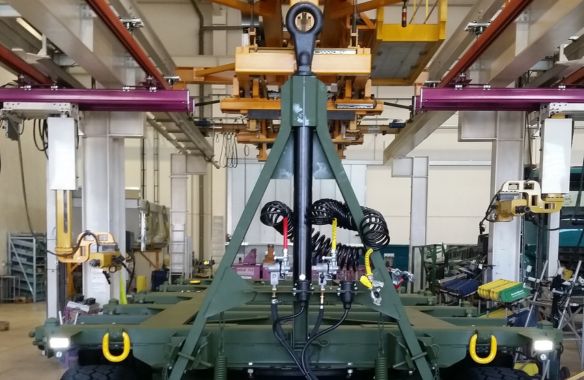

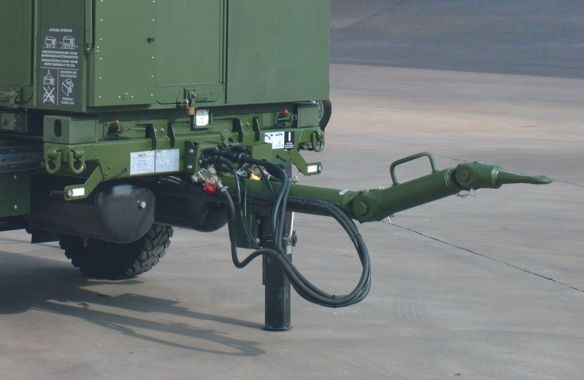

Adjustable drawbar

Vertical parking position of the drawbar possible.

Find out more

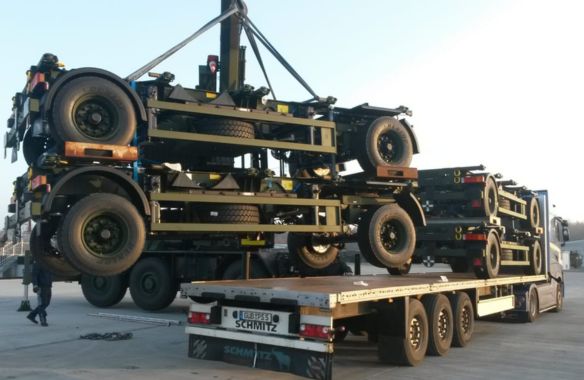

Loadability

Loading in a double pack (up to 4 vehicles per semi-trailer/platform).

Find out more

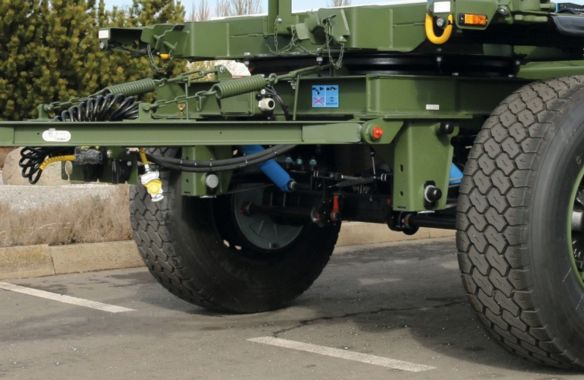

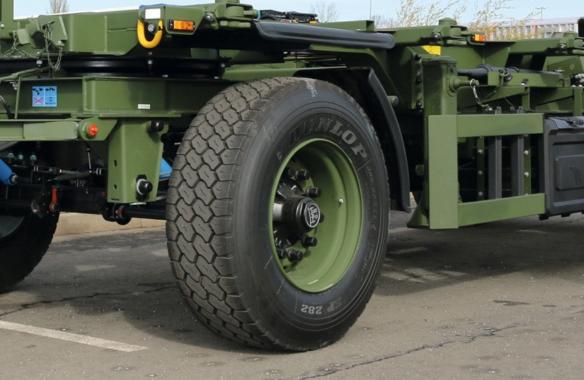

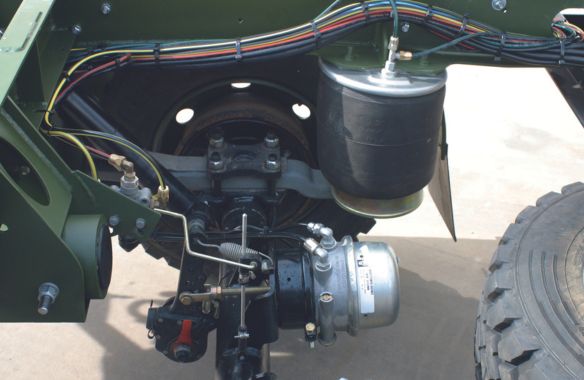

BPW axles

BPW axles with drum brakes.

Find out more

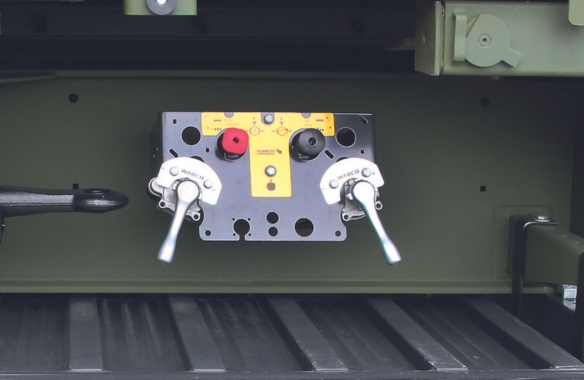

Parking brake and air suspension

Control unit for parking brake and air suspension with two lifting and lowering valves on the side of the A.WF solebar.

Find out more

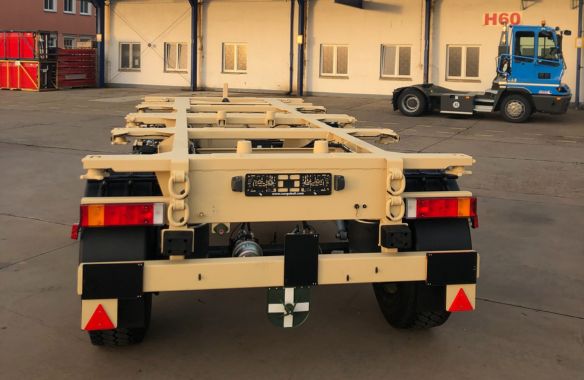

Guide rollers

Retractable guide rollers in the middle and at the rear.

Find out more

The attachments

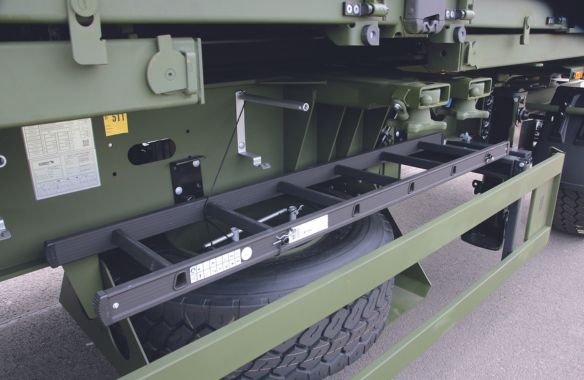

Aluminium ladder

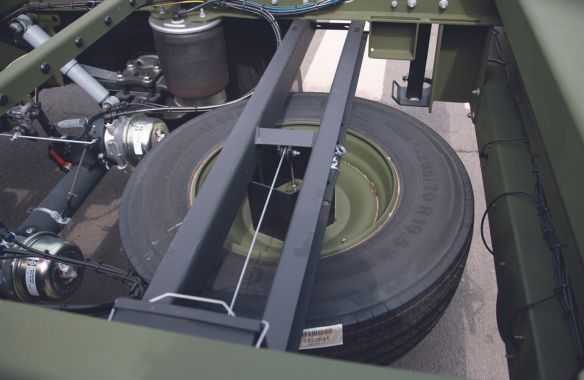

Aluminum ladder 1.80 m incl. holder, spare wheel holder in tub design (for one spare wheel).

Find out more

Underride guard

Underride guard with ECE warning marking panel, folding GGVS sign and central work light.

Find out more

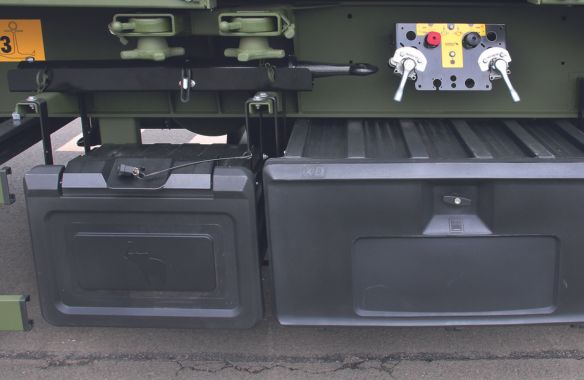

Spare drawbar tube

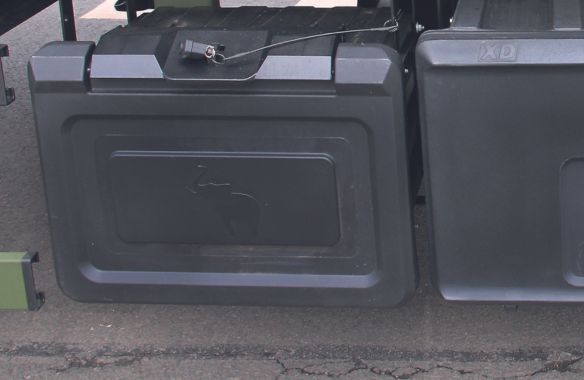

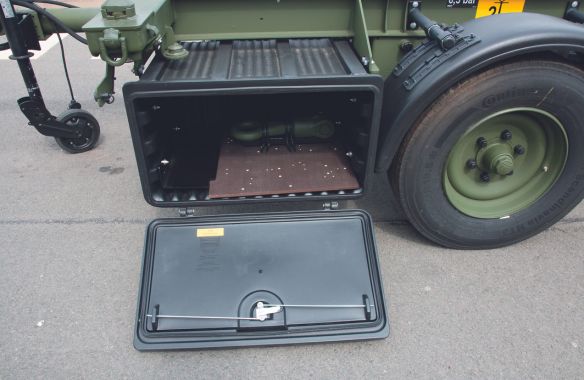

Spare drawbar tube with towing eye according to DIN 74054 (D = 40 mm) in parkingposition. Toolbox with drawer and shelf and largetoolbox to hold camouflage net (Vol.: 225 l).

Find out more
