S.KI SOLID

S.KI SOLID

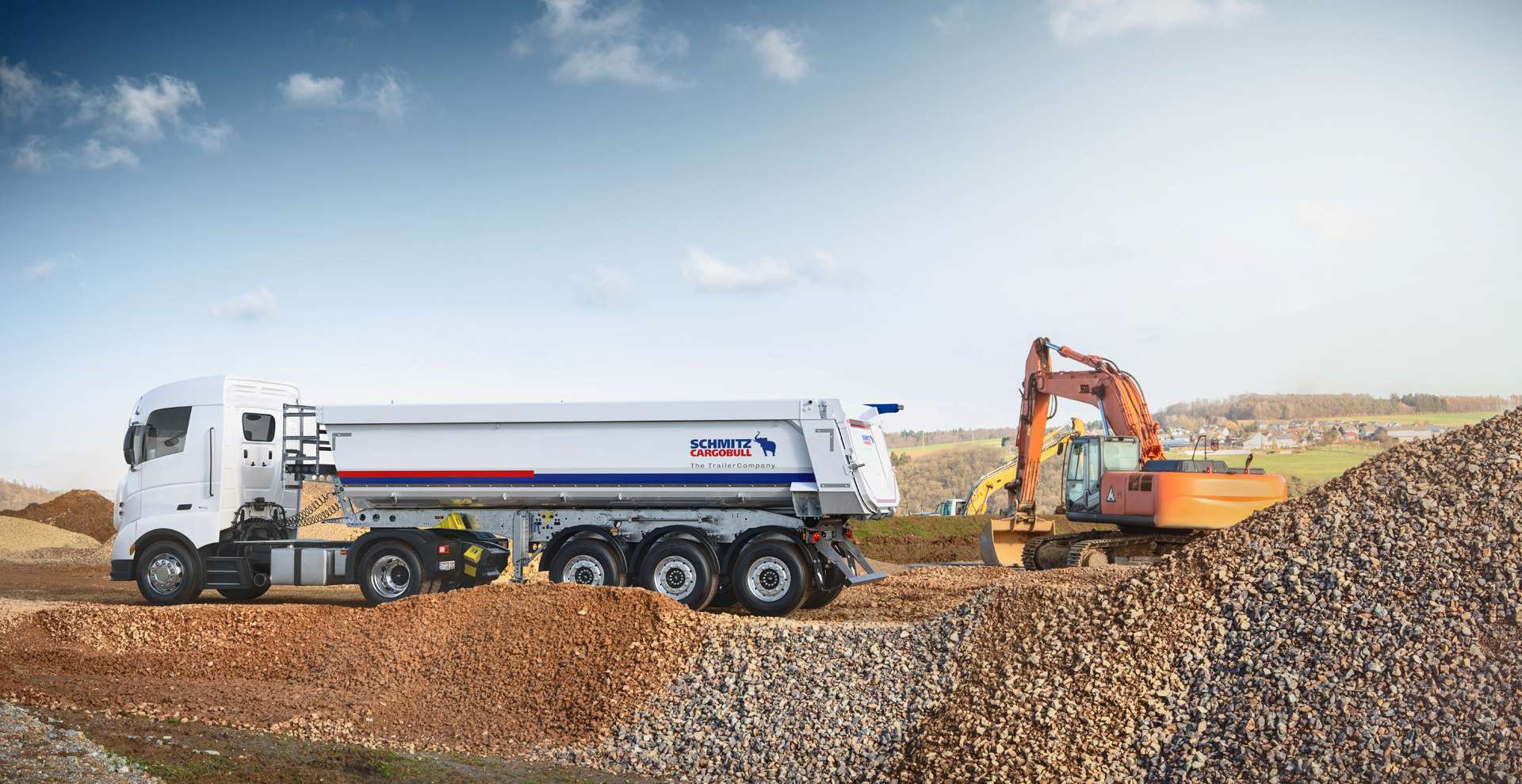

S.KI SOLID tipper trailers with their rounded steel bodies represent the all-purpose transport solution for building materials. Thanks to their excellent wear resistance, these tippers are perfect for abrasive materials.
  • TypeTipper semi-trailers
  • BodyRounded steel body
  • Volume21-56m³
  • Type length7.2 / 8.2 / 9.6 / 10.5
  • Body depth1,300-2,500mm
  • Axles2-3
  • ChassisSteel
The S.KI SOLID tipper semi-trailer with rounded steel body for the transport of construction materials

Your benefits

  • More payload with the new chassis generation.
    Read more
  • More safety: the revised underride guard already meets the legal requirements according to ECE-R58.03.
    Read more
  • Trailer chassis concept for use with two and three-axle semi-trailer tractor units.
    Read more
  • Body shape prevents goods from sticking. This increases safety when unloading.
    Read more
  • Robust, welded steel chassis and running gear suitable for off-road terrain.
    Read more
  • Wear-resistant fine-grain rounded steel body for durability, low maintenance and high value retention.
    Read more
  • The flat, wider floor creates a low centre of gravity and greater driving stability.
    Read more

Overview

Chassis & running gear

  • Chassis
  • Running gear
  • Lighting
  • Attachment parts
Chassis
Robust, hot galvanised and weight-optimised EXTRA LIGHT chassis

EXTRA LIGHT chassis

The robust, hot galvanised and weight-optimised EXTRA LIGHT chassis guarantees maximum payload and long-term value retention. Optional hot galvanising for the best possible corrosion protection.
Find out more
The steel chassis is reliable, durable, low-maintenance and ideal for off-road operation with excellent value retention.

Standard chassis

The steel chassis is durable, low-maintenance and ideal for off-road operations. Its torsionally rigid construction ensures that the chassis has excellent tipping stability. Optional hot galvanising for the best possible corrosion protection.
Find out more
Heavy-duty running gear and chassis for extremely tough road conditions

Heavy-duty chassis

Designed for use on poor-quality roads and extreme winter conditions, the Heavy-Duty running gear delivers maximum value retention and excellent safety. Optional hot galvanising for the best possible corrosion protection.
Find out more

Folding underride guard

Its folding underride guard - optionally also with electropneumatic folding - ensures improved unloading ground clearance with pavers when retracted.  Increased safety: the revised underride guard already meets the legal requirements according to ECE-R58.03. The spring-supported folding mechanism makes it easier to operate,
More about the new chassis-generation
Body
Reliable mileage (km) with the ROTOS? axle

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.
Find out more

Lifting axle and starting aid

The lifting axle and starting aid function improve efficiency, driving safety and traction off-road, and are therefore standard equipment on all 3-axle S.KI tipper semi-trailers.
Find out more
The paver brake controls the brake pressure during unloading

Paver brake

During operation of the road paver, the truck-trailer combination is pushed during tipping. The paver brake controls the brake pressure, preventing the semi-trailer from rolling away on sloping ground.
Find out more
Lighting

Lighting

A range of lighting options further ensures the best possible safety on the road and during operations.

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash, signalling to other road users that the vehicle is about to turn.
Find out more
Attachment parts

Attachment parts

Attachments round off the convenient use of the trailer, simplifying everyday life in transport. Just a few of many extension options.

Body

  • Body
  • Floor and side wall
  • Roof and covers
  • Working platform
  • Rear
Body


Rounded steel body

The flat, wider floor of the robust rounded steel body has a lower centre of gravity, increasing driving stability and tipping safety. Goods slide out effectively from the trailer, thanks to the shape of the rounded body.
Floor

Floor and side wall thicknesses

Different floor and side wall thicknesses are matched to your applications.
Roof

Sliding curtain

Convenient and secure tarpaulin system. The tarpaulin can be quickly and easily operated from the ground. Available as a manual or electric version.

Roller tarpaulin

Easy-to-operate and robust well cover protects the cargo from moisture and dirt, especially during transport. An optional quick-release clamping mechanism saves time and simplifies operation.
Working platform
Working platform for the S.KI LIGHT

Working platform

The working platform with non-slip floor, well entry aid and parking position for the hydraulic tube, provides for simple and safe operation of the roller tarpaulin.
Find out more
Rear

Different rear wall versions

There are a range of different rear wall versions to ensure the best possible unloading, perfectly adapted to every transport task.

Assist systems

  • Tyre pressure systems
  • Brake pad wear indicator
Tire pressure systems
S.KI_tyre pressure control_re-pressurisation_system

Tyre re-pressurisation system

The tyre re-pressurisation system checks the tyre pressure and automatically inflates the tyre if required. This results in lower tyre wear and improved driving characteristics.
Find out more
The Schmitz Cargobull tyre pressure control system.

TPMS with autolocation

The tyre pressure monitoring system displays when you need to top up air into a tyre. With autolocation the sensor is assigned to the correct tyre position. The Schmitz Cargobull sensor learns independently and records the tyre pressure and tyre temperature data. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Find out more
Brake pad wear indicator
Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Find out more
