Z.KO COOL

The Z.KO COOL central axle box body trailer is the perfect addition to the M.KO COOL box body truck for temperature-controlled distribution transport. Its through-loading function saves you time and space at the refrigerated warehouse ramp, as the vehicle can be unloaded in one operation.

Reliable distribution transport with the Z.KO COOL central axle trailer.

Your benefits

Energy-efficient temperature control with brand-name cooling units and FERROPLAST® thermal technology box body.
Read more
Fast loading and unloading as a through-loading trailer combined with the M.KO truck box body, with no need to uncouple the trailer.
Read more
Flexible load securing systems combined with multifunctional floors, safety beams and double-decker equipment.
Read more
Variable equipment for customised interior division into the required temperature zones for MultiTemp transport.
Read more
Space for up to 38 Euro pallets in conjunction with the M.KO truck box body.
Read more
Optimum use of space: extremely manoeuvrable, low-coupled central axle trailer with underfloor cooling unit.
Read more

Chassis & running gear

Running gear

Body

Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.

Body

Double-decker system
Equipment for through-loading trailers
Rear
Floor
Lighting

Interior

High loading volume with the double-decker system.

Double-decker system

Flexible and higher utilisation of the trailer's capacity, thanks to its double-decker system. Ideal for freight that cannot be stacked. The system provides for gap-free loading using two infinitely height-adjustable split levels.

Equipment for through-loading trailers

Front wall roller shutter with folding straddle plate.

Sectioned portal on the front wall

Flexibility when accepting transport tasks. The split portal on the front wall can also be opened even when there is minimal space between the truck and trailer.

Lightweight shutter over the transition protects against the effects of weather during loading and unloading.

Shutter over the transition

Quickly protect against sunlight, snow and rain. The lightweight shutter over the transition protects against the effects of weather during loading and unloading.

The bridge between the truck and box body trailer enables loading and unloading in one go.

Bridge

The bridge between the truck and box body trailer is made of stable stainless steel. The bridge rests on a stainless steel straddle nose with rubber cushioning for sound damping when overtaking.

Rear

Fast loading and unloading without opening the swing doors.

Rear supporting flap

Fast loading and unloading without opening the swing doors. A FERROPLAST^® panel is fitted as a top flap to close the upper part of the tailgate together with the tail lift.

Protection of the rear with standard rubber bumpers.

Standard rubber bumper

As the trailer is approaching a ramp, the rubber bumpers protect the trailer body from damage by bumps, and impact shocks are dampened. The bumpers prevent expensive and time-consuming repairs.

Roller corner bumpers even out loads at the rear

Roller corner bumper

Roller corner bumpers compensate for vertical motion during loading and unloading on the ramp. The rubber bumpers prevent damage to the rear portal, protecting the semi-trailer.

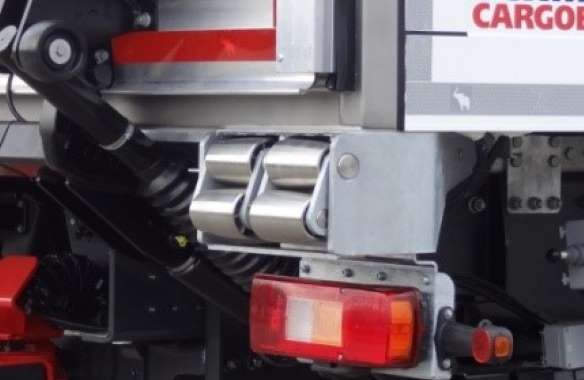

Compression roller bumper for optimum protection at the rear.

Dynamic Ramp Protection

The compressible stainless steel bumpers compensate for vertical movements under load and absorb impact shocks. The trailer body is protected and the impact force is directed into the chassis.

Scuff rail reduces wear with frequent loading and unloading.

Scuff plates

Scuff plates welded to the floor protect the side walls from damage. Insulation quality is unaffected, as there are no screw or rivet joints.

Reversing camera for safe loading and unloading, and protection of everyone involved.

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.

Tail lift for easy loading and unloading.

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.

Floor

Multi-functional floor

The floor has a significantly longer service life than conventional floors, while also being lighter and more slip-resistant. Vertical clamping beams can be inserted directly into the recessed load securing profiles.

Side wall

Internal lighting

Good illumination of the interior of the box is crucial for safe working conditions. A range of different light and switch versions are available to suit all requirements.

Exterior lighting provides for the safety of the truck and other road users.

External lighting

Side markers, and front and rear lights on trailers are required by law. Additional reversing lights or working spotlights and a warning lamp for the tail lift are also optionally available.

Temperature-controlled transport

Cooling unit
Air distribution
MultiTemp equipment
Strip curtain

Cooling unit

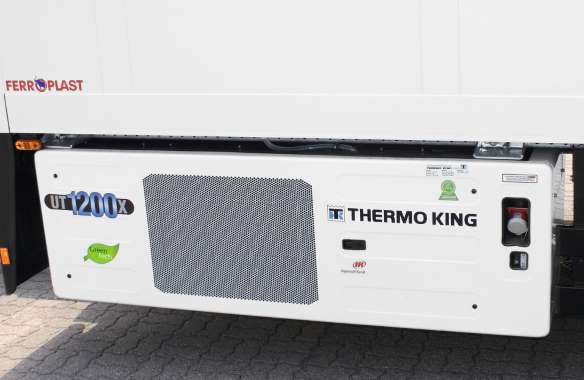

Underfloor cooling unit

The underfloor brand-name cooling unit is a high-performance alternative to front wall units. Full use of the space in low-coupled central axle trailers when there is no room on the front wall for a cooling unit.

Air distribution

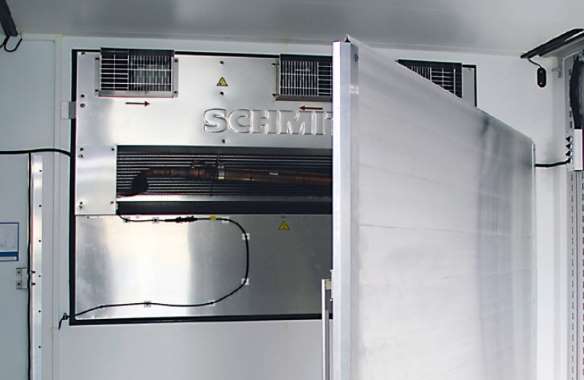

M.KO truck box body circulation wall

Air circulation wall

End-to-end air circulation is ensured by an air circulation wall. The front wall and cooling unit are protected from damage by spacer profiles and a pallet stop. The optional pivoting version provides for fast cleaning.

MultiTemp equipment

Creation of temperature zones where they are needed

Variable longitudinal partition

Longitudinal partition walls with variable end sections enable different sizes of additional temperature zones to be created quickly and simply.

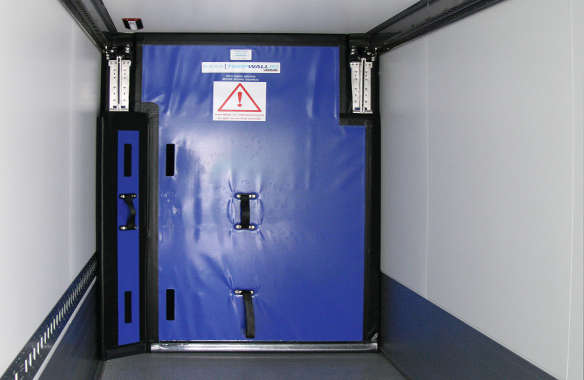

Plastic partition for ease of handling.

Plastic partitions

Lightweight plastic partitions ensure that goods can be safely handled within a confined space.

Strip curtain

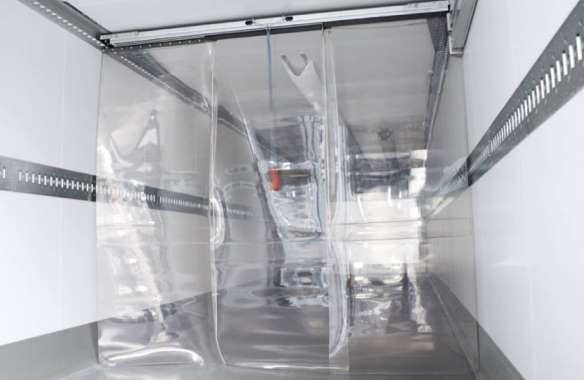

Strip curtain for the M.KO truck box body

Strip curtain

Variable strip curtains, which can be moved lengthwise, guarantee enhanced goods safety while reducing fuel use, as less cooled air is lost through open doors with partial loads.

Assist systems

Electronic ramp approach aid

Electronic ramp approach aid

Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.

Load securing

Restraint
Lashing points and aids

Restraint

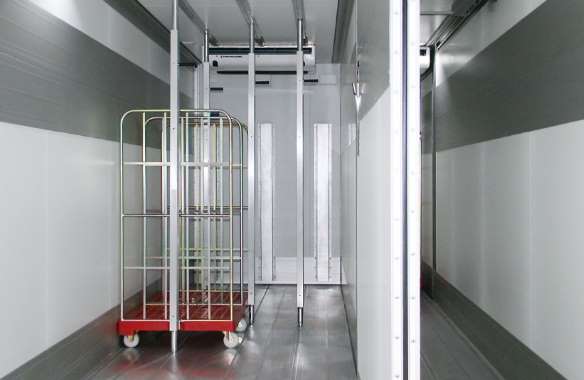

Reliably secure loads with load securing beams.

Load securing beams

Unpalletised freight can be secured by means of flush-mounted load securing rails. Load securing beams can be suspended as required, enabling the interior to be freely used.

Recessed load securing rail in the M.KO truck box

Load securing rail

The flush-mounted load securing rail prevents damage to the load.

Lashing points and medium

S.KO COOL lashing eyes

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.

Truck Bodies load securing belts

Load securing belts

Load securing belts can be flexibly used with partial loads to prevent them from slipping or toppling over.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

DIN EN 12642 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
Read more
ATP certification
Our trailers comply with ATP Class FRC or FNA, depending on the application and equipment options, to prove that the refrigeration chain remains intact during transport.
Read more
HACCP
Our trailers are uncompromising when it comes to hygiene for food and pharmaceutical transport. Their interiors comply with the most stringent HACCP cleanliness and hygiene requirements.
Read more
PIEK
They meet the exacting PIEK criteria for deliveries in urban areas to reduce noise at night.
Read more
