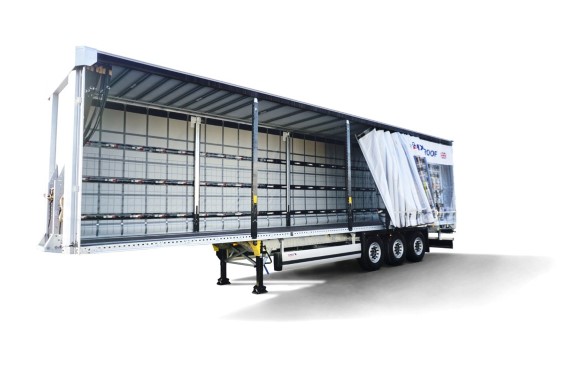

S.CS FIXED ROOF

The UK has distinct requirements governing height (>4000 mm) and permitted total weight (44 tonnes). S.CS FIXED ROOF curtainsider semi-trailers conform to these requirements with their fixed roof consisting of steel elements, low empty weight and payload of up to 32 tonnes.

S.CS FIXED ROOF

Your benefits

Schmitz Cargobull aluminium roof allows a side loading height of up to 3,100 mm
Read more
Form-fitting loading of ISO pallets through the straight front wall even without the transverse thrust of the forklift.
Read more
High body strength certified to DIN EN 12642 Code XL, with optional beverage certification
Read more
Bolted connections make the chassis easy to repair
Read more
Rolled, galvanised MODULOS chassis – easy to maintain with high corrosion protection and a 10-year guarantee against rusting through
Read more
Aluminium front wall with UK-design of steel corner supports.
Read more
Schmitz Cargobull aluminium roof with various load securing options.
Read more

Chassis & running gear

Chassis
Running gear

Chassis

MODULOS

MODULOS - Chassis

Rolled MODULOS chassis has a repairfriendly design based on bolted, hot galvanised technology. It provides high value retention and low total cost of ownership as well as options to easily modify the modular system at any stage.

Body

ROTOS

ROTOS

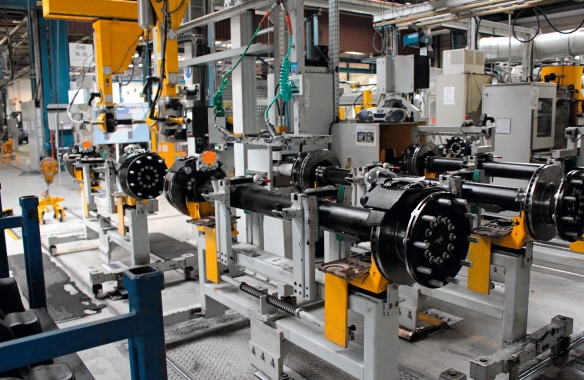

ROTOS axles with disc brakes for high traffic safety and lower total cost of ownership. Six years’ warranty on hub and tube, and more than 1 million ROTOS running gear sold to date.

Axle lift for better traction

Liftable axle

ROTOS running gears can be optionally equipped with an axle lift function. The axle lift and the starting aid increase efficiency, driving safety and traction and reduce tire wear.

The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.

Body

Page
Floor
Roof
Rear
Front wall

Side

Sliding curtain

XL load-securing side curtain 1,800 mm high. Built-in anti-theft protection by means of steel wires incorporated in the curtain to prevent intentional cutting. Simple to use for side loading and unloading with two sliding posts and a side curtain with 18 buckles.

Boden

Protection of the rear portal with frequent loading and unloading

Floor panels at the rear portal

When frequently loaded with a forklift truck, the last floor panel is subject to increased wear. For protection, an additional floor plate is installed on the rear portal, which extends the service life of the floor.

High stacker axle load and a permanently elastic adhesive bonding of the floor

Geklebter Boden

Dauerelastisch verklebter Boden ist belastbarer und schützt die Fracht von unten vor Witterungseinflüssen. Neben einer dichten und versiegelten Ladefläche sorgt der geklebte Boden für eine höhere Staplerachslaste.

S.CS curtainsider semi-trailer wooden floor for different stacker axle loads

Wooden floor

Robust and durable screen-printed shelves for different forklift axle loads. The base plates are sealed so that no moisture can reach the load from below.

Non-slip floor increases the safety of goods and prevents slipping

Anti-slip floor

The anti-slip floor with plastic coating keeps the load in place. Load securing is made easier thanks to a higher coefficient of sliding friction.

Roof

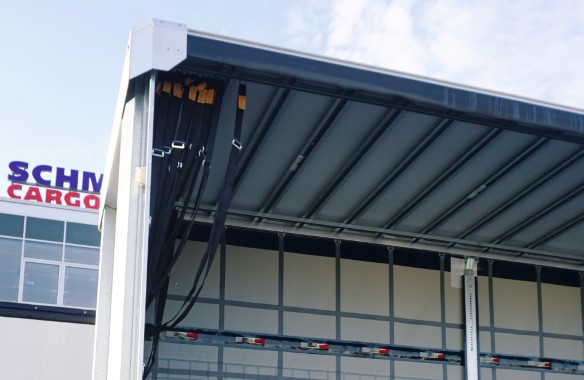

Fixed roof

Fixed Schmitz Cargobull aluminium roof load restraint options. Our optional restraint straps with recessed tracks on both sides or in the middle prevent loads from slipping, improving safety.

Rear

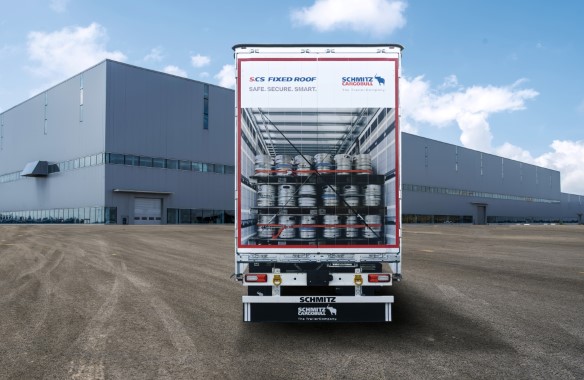

Rear

Straight rear panel and flush lock rods make sign writing easy.

Easy to repairs door hinges and hot-dip galvanised corner supports for durability.

Front wall

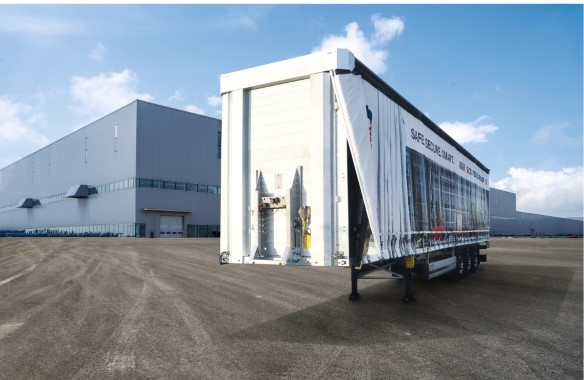

Front wall

The C-couplings PLUS 2 x 7 + 1 x 15-pin sockets fitted at the front of the bulkhead fit all tractor units and have an operator-friendly design, reducing the risk of confusing the connections.

Assist systems

Tyre pressure systems
Brake pad wear indicator
Electronic ramp approach aid

Tire pressure systems

Control and timely information on tyre pressure with the tyre pressure system

Refill system

The tire pressure top-up system monitors the tire pressure and tops it up independently if necessary. The result is less tire wear and better handling.

The Schmitz Cargobull tyre pressure control system.

Control system

The tire pressure monitoring system indicates when you need to top up the air in a tire. With the correct tire pressure, the tires wear less and you save fuel due to the improved rolling resistance.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Electronic ramp approach aid

Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.

Load securing

Restraint
Lashing points and aids
Non-slip floor

Restraint

Load restraint straps

The optional load restraint straps with recessed restraint tracks on both sides or in the middle prevent the load from slipping, improving work safety.

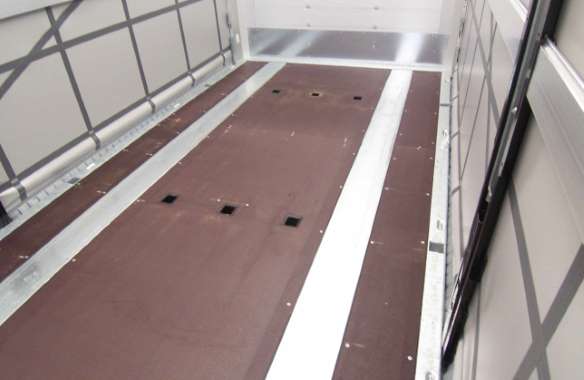

Stanchions inserted into the floor provide for form-fitting load securing

Stake pockets

The stanchions can be inserted into the floor to create a positive fit for the load and offer a further option for flexible load securing. Long materials, for example, can be secured efficiently.

Lashing points and medium

Lashing eyes

The lashing eyes with a tensile force of up to 4 tons offer flexible load securing points. Suitable for all standard hooks for fast load securing, into which chains can also be locked.

Lashing holes to fit all popular hooks to efficiently secure your load

Continuous lashing holes

With the standard lashing holes in the outer frame or optionally in the pallet stop, the load can be secured very quickly, efficiently and flexibly. The lashing holes are suitable for all standard hooks.

Non-slip floor

Non-slip floor increases the safety of goods and prevents slipping

Non-slip floor

Load securing is made easier with the certified non-slip floor with black plastic coating. Your load stays in a fixed position and loose non-slip mats are now a thing of the past.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

DIN EN 12642 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
Read more
Beverages
Trailer bodies that confirm to DIN EN 12642 Code XL with the addition "suitable for beverage transport" meet the special requirements governing well pallets and drums. Suitable for one- or two-layer beverage transport.
Read more

What our customers say

McGregor Logistics
Woodside Haulage

McGregor

Mc Gregor Logistics

“Our vehicles are worked extensively but we know Schmitz Cargobull products are robust and durable enough that our loads aren’t going to incur any damage.” KEITH LAW, MANAGING DIRECTOR, MCGREGOR LOGISTICS

Woodside Haulage

Woodside-Haulage

“The Schmitz Cargobull build quality really is second to none… the assets are of the highest
quality and safety standards.” MARK WOODSIDE, MANAGING DIRECTOR, WOODSIDE HAULAGE

Our services

Service Contracts

With the right service contract, you retain full control over the costs and we make sure that you stay mobile!

More about:Service Contracts

Service Partners keep you mobile and minimise your downtimes.

Telematic

TrailerConnect® telematics provides you with all the information you need about your vehicles.

More about:Telematic

TrailerConnect? telematics provides you with all the information you need on your trailers.

Financing

We will provide you with a customized offer with attractive conditions for the entire life cycle of your investment.

More about:Financing

Individual quote with attractive terms and conditions for the entire lifecycle of your investment.

Media

S.CS FIXED ROOF curtainsider semi-trailer - Short information
Download
