S.CS FREEPOST

This curtainsider semi-trailer without sliding posts is specially equipped for transport requirements in the UK and Ireland. With a fixed aluminium roof and bolted galvanised steel cant rail , the curtainsider is certified according to DIN EN 12642 Code XL. A reinforced chassis structure means it is particularly robust and ideal for quick, easy and safe side loading.

Your benefits

Rolled, galvanised MODULOS chassis – low-maintenance with high corrosion protection and 10-year guarantee against rusting through
Read more
Schmitz Cargobull aluminium roof with steel outer beam enables a lateral loading height of up to 3,200 mm
Read more
Load securing: flexible points for load securing with continuous lashing holes and an optional 16 pairs of 4t lashing rings
Read more
Free side loading without sliding posts
Read more
100% SMART – Telematics TrailerConnect® is factory fitted as standard. Hardware and basic service can be used immediately
Read more
Proven road safety: ROTOS axle unit with disc brakes for more safety and low overall costs
Read more
Protected goods: DIN EN 12642 Code XL certified
Read more
Anti-theft device in the side curtain as standard
Read more

Technical data

Body length i.L.13,5m
Body height i.L.2,600, 2,800, 3,000 and 3,200mm
Unladen weight6,800kg

Chassis & running gear

Chassis
Running gear

Chassis

MODULOS

MODULOS - Chassis

Rolled MODULOS chassis has a repairfriendly design based on bolted, hot galvanised technology. It provides high value retention and low total cost of ownership as well as options to easily modify the modular system at any stage.

Body

ROTOS

ROTOS

ROTOS axles with disc brakes for high traffic safety and lower total cost of ownership. Six years’ warranty on hub and tube, and more than 1 million ROTOS running gear sold to date.

Axle lift for better traction

Liftable axle

ROTOS running gears can be optionally equipped with an axle lift function. The axle lift and the starting aid increase efficiency, driving safety and traction and reduce tire wear.

The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.

Body

Page
Floor
Roof
Rear
Front wall

Side

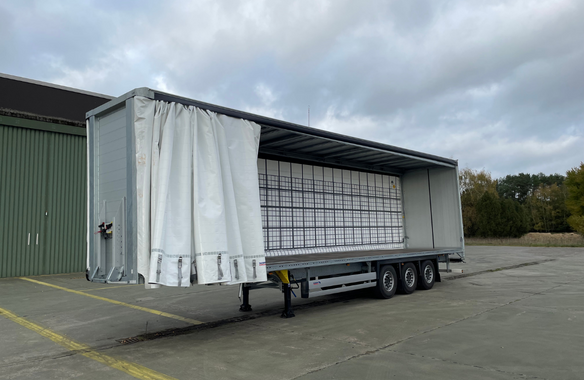

Sliding curtain

XL certified body with stable side curtains with integrated theft protection. Easy and safe handling with TYRIDE curtain locks and tensioning devices at the front and rear for side loading and unloading without sliding.

Boden

S.CS curtainsider semi-trailer wooden floor for different stacker axle loads

Wooden floor

Robust and durable screen-printed shelves for different forklift axle loads. The base plates are sealed so that no moisture can reach the load from below.

Protection of the rear portal with frequent loading and unloading

Floor panels at the rear portal

When frequently loaded with a forklift truck, the last floor panel is subject to increased wear. For protection, an additional floor plate is installed on the rear portal, which extends the service life of the floor.

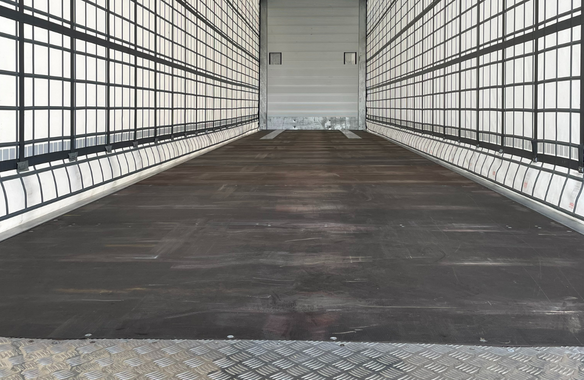

Glued floor

Permanently elastic glued floor is more resilient and protects the cargo from any bad weather conditions from below. In addition to a dense and sealed loading surface, the bonded floor ensures a higher forklift axle load.

Non-slip floor increases the safety of goods and prevents slipping

Anti-slip floor

The anti-slip floor with plastic coating keeps the load in place. Load securing is made easier thanks to a higher coefficient of sliding friction.

Roof

Fixed Schmitz Cargobull roof

Fixed Schmitz Cargobull aluminium roof with steel outer bars. The optional load restraint straps with restraint rails embedded on both sides or in the middle prevent the load from slipping and increase work safety.

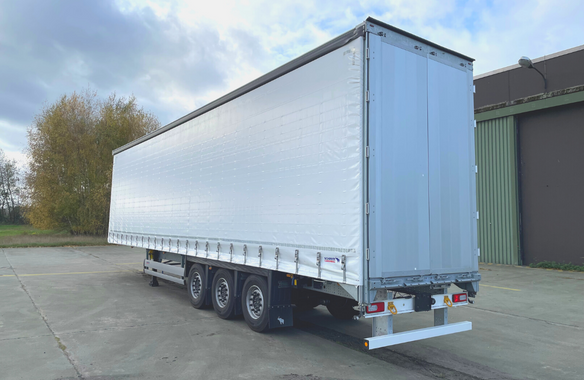

Rear

Rear

Straight back wall and flush locking bars for easy and individual labelling. Easy-to-repair door hinges and hot-dip galvanised corner supports for durability.

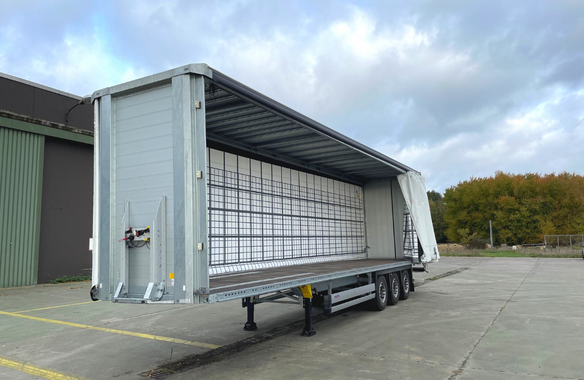

Front wall

Front wall

The C-couplers PLUS 2 x 7 + 1 x 15-pin sockets at the front of the bulkhead fit all tractors, have a user-friendly design and reduce the risk of confusing the connections.

Assist systems

Tyre pressure systems
Brake pad wear indicator
Electronic ramp approach aid

Tire pressure systems

Control and timely information on tyre pressure with the tyre pressure system

Refill system

The tire pressure top-up system monitors the tire pressure and tops it up independently if necessary. The result is less tire wear and better handling.

The Schmitz Cargobull tyre pressure control system.

Control system

The tire pressure monitoring system indicates when you need to top up the air in a tire. With the correct tire pressure, the tires wear less and you save fuel due to the improved rolling resistance.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Electronic ramp approach aid

Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.

Load securing

Restraint
Lashing points and aids
Non-slip floor

Restraint

Load restraint straps

The optional load restraint straps with recessed restraint tracks on both sides or in the middle prevent the load from slipping, improving work safety.

Stanchions inserted into the floor provide for form-fitting load securing

Stake pockets

The stanchions can be inserted into the floor to create a positive fit for the load and offer a further option for flexible load securing. Long materials, for example, can be secured efficiently.

Lashing points and medium

Lashing eyes

The lashing eyes with a tensile force of up to 4 tons offer flexible load securing points. Suitable for all standard hooks for fast load securing, into which chains can also be locked.

Lashing holes to fit all popular hooks to efficiently secure your load

Continuous lashing holes

With the standard lashing holes in the outer frame or optionally in the pallet stop, the load can be secured very quickly, efficiently and flexibly. The lashing holes are suitable for all standard hooks.

Non-slip floor

Non-slip floor increases the safety of goods and prevents slipping

Non-slip floor

Load securing is made easier with the certified non-slip floor with black plastic coating. Your load stays in a fixed position and loose non-slip mats are now a thing of the past.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

DIN EN 12642 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
Read more
Beverages
Trailer bodies that confirm to DIN EN 12642 Code XL with the addition "suitable for beverage transport" meet the special requirements governing well pallets and drums. Suitable for one- or two-layer beverage transport.
Read more
