S.KI SOLID

S.KI SOLID

S.KI SOLID tipper trailers with their rounded steel bodies represent the all-purpose transport solution for building materials. Thanks to their excellent wear resistance, these tippers are perfect for abrasive materials.
  • TypeTipper semi-trailers
  • BodyRounded steel body
  • Volume21-56m³
  • Type length7.2 / 8.2 / 9.6 / 10.5
  • Visina nadgradnje1.300 - 2.500mm
  • Osovine2 - 3
  • ChassisSteel

Your benefits

  • Increased value retention, improved corrosion protection and weight reduction due to the new trough
    Pročitajte više
  • 50-kg weight reduction due to the new generation frame. In addition, improved corrosion protection.
    Pročitajte više
  • 280-kg weight reduction for increased payload capacity while improving operability, product quality, durability and reliability
    Pročitajte više
  • Podvoz
    Pročitajte više
  • The flat, wider floor creates a low centre of gravity and greater driving stability.
    Pročitajte više
  • Trailer chassis concept for use with two and three-axle semi-trailer tractor units.
    Pročitajte više
  • Ovalna kiper nadgradnja od zavarenog finog zrnastog čelika za dugovečnost, niske troškove održavanja i visoku stabilnost faktora vrednosti.
    Pročitajte više
  • Robust, welded steel chassis and running gear suitable for off-road terrain.
    Pročitajte više
  • Zahvaljući obliku nadgradnje nema prijanjanja utovarene robe. Na taj način je povećana bezbednost pri istovaru.
    Pročitajte više

Overview

Šasija i vozno postolje

  • Šasija
  • Vozno postolje
  • Svetlo
  • Ugradbeni delovi
Chassis
Robust, hot galvanised and weight-optimised EXTRA LIGHT chassis

EXTRA LIGHT chassis

The robust, hot galvanised and weight-optimised EXTRA LIGHT chassis guarantees maximum payload and long-term value retention. Optional hot galvanising for the best possible corrosion protection.
Saznajte više
The steel chassis is reliable, durable, low-maintenance and ideal for off-road operation with excellent value retention.

Standardna šasija

Čelična šasija je opteretljiva, lagana za održavanje i terenski sposobna. Konstruisana je kao torziono kruta šasija i obezbeđuje visoku stabilnost kipanja. Opciono toplo cinkovanje pruža najbolju moguću zaštitu od korozije.
Saznajte više
Heavy-duty running gear and chassis for extremely tough road conditions

Heavy-duty chassis

Designed for use on poor-quality roads and extreme winter conditions, the Heavy-Duty running gear delivers maximum value retention and excellent safety. Optional hot galvanising for the best possible corrosion protection.
Saznajte više

Sklopiva zaštita od podletanja

Preklopna zaštita od podletanja - opciono i elektropneumatski preklopna - obezbeđuje u podignutom stanju bolju visinu iznad tla za istovar u mašinu za asfaltiranje. Veća bezbednost: Prepravljena zaštita od podletanja već sad ispunjava zakonske propise prema regulativi ECE-R58.03. Preklopni mehanizam potpomognut oprugama olakšava rukovanje.
Više o novoj generaciji šasija
Running gear
Reliable mileage (km) with the ROTOS? axle

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.
Saznajte više
Lifting axle for the S.KI tipper semi-trailer

Podizna osovina i pomoć pri polasku

Podizač osovine i pomoć pri polasku povećavaju efikasnost, bezbednost u vožnji i trakciju na terenu i stoga spadaju u serijsku opremu svake troosovinske poluprikolice S.KI.
Saznajte više
The paver brake controls the brake pressure during unloading

Paver brake

During operation of the road paver, the truck-trailer combination is pushed during tipping. The paver brake controls the brake pressure, preventing the semi-trailer from rolling away on sloping ground.
Saznajte više
Svetlo

Lighting

A range of lighting options further ensures the best possible safety on the road and during operations.
Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash, signalling to other road users that the vehicle is about to turn.
Saznajte više
Ugradbeni delovi

Ugradbeni delovi

Ugradbeni delovi zaokružuju komforno korišćenje vozila i olakšavaju svakodnevni transport. Samo jedna od mnogih mogućnosti proširenja.

Nadgradnja

  • Kiper nadgradnja
  • Pod i bočni zid
  • Krov i prekrivke
  • Radna platforma
  • Zadnji deo
Kiper nadgradnja

čeličnu ovalnu kiper nadgradnju

Robusna ovalna kiper nadgradnja od čelika ima zahvaljujući zarubljenom, širem podu niže težište i time povećava stabilnost u vožnji i bezbednost pri kipanju. Ovalna kiper nadgradnja omogućuje dobro klizanje utovarene robe.
Floor

Floor and side wall thicknesses

Different floor and side wall thicknesses are matched to your applications.
Krov

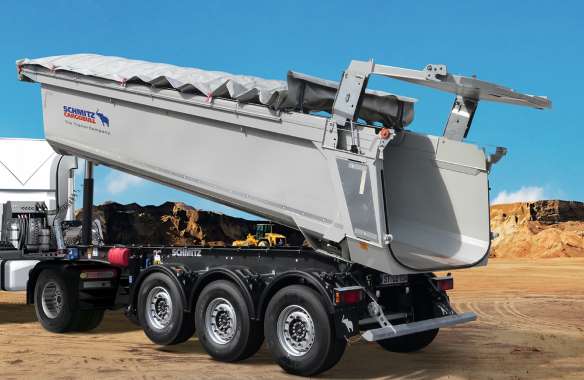

Klizna prekrivka

Komforan i bezbedan sistem prekrivanja. Brzo i jednostavno rukovanje prekrivkom sa tla. Na zahtev u ručnoj ili električnoj izvedbi.

Roller tarpaulin

Easy-to-operate and robust well cover protects the cargo from moisture and dirt, especially during transport. An optional quick-release clamping mechanism saves time and simplifies operation.
Radna platforma
Working platform for the S.KI LIGHT

radnoj platformi

Radna platforma sa protivkliznim podom, merdevinama za pristup kiper nadgradnji i pozicijom parkiranja za hidraulično crevo omogućuje jednostavno i bezbedno rukovanje rolo ceradom.
Saznajte više
Rear

Izvedbe zadnjeg zida

Različite izvedbe zadnjeg zida za najbolji mogući istovar, optimalno prilagođene dotičnom transportnom zadatku.

Sistemi za pomoć

  • ob-board-weight-system
  • Sistemi za kontrolu pritiska u pneumaticima
  • Indikator istrošenosti kočionih obloga
Pressure monitoring system
S.KI_tyre pressure control_re-pressurisation_system

Tyre re-pressurisation system

The tyre re-pressurisation system checks the tyre pressure and automatically inflates the tyre if required. This results in lower tyre wear and improved driving characteristics.
Saznajte više
The Schmitz Cargobull tyre pressure control system.

TPMS with autolocation

The tyre pressure monitoring system displays when you need to top up air into a tyre. With autolocation the sensor is assigned to the correct tyre position. The Schmitz Cargobull sensor learns independently and records the tyre pressure and tyre temperature data. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Saznajte više
Brake pad wear indicator
Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Saznajte više

What our customers say

The Geiger Group tests S.KI tipper semi-trailers

Geiger Group

The Oberstdorf-based Geiger Group tests Schmitz Cargobull prototypes. This customer relationship also began with a test.
Saznajte više

Naše usluge

Servisni ugovori

Uz odgovarajući servisni ugovor imate potpunu kontrolu nad troškovima, a mi brinemo o vašoj mobilnosti!
Više o temi:Servisni ugovori
Service Partners keep you mobile and minimise your downtimes.

Telematika

Pomoću sistema telematike TrailerConnect® dobijate sve potrebne informacije o svojim vozilima.
Više o temi:Telematika
TrailerConnect? telematics provides you with all the information you need on your trailers.

Finansiranje

Izradićemo vam individualnu ponudu sa atraktivnim uslovima tokom celokupnog životnog ciklusa vaše investicije.
Više o temi:Finansiranje
Individual quote with attractive terms and conditions for the entire lifecycle of your investment.

Mediji

  • Data sheet S.KI SOLID 7.2
    Download
  • S.KI SOLID tipper trailer with rounded steel body - Short information
    Download
  • Brief Information Semi-Trailer S.KI SOLID EXPRESS
    Download
  • Brief Information On-Board Weighing system for Tipper-Semi Trailer S.KI
    Download
