A smart tool - TyreManager application

A smart tool - TyreManager application

TyreManager application is used to configure and manage the installed tire sensors of your trailer with TrailerConnect® Telematics. Changes to the sensor positions can be made at any time, easily, mobile and without physical connection to the trailer. A smart tool - TyreManager Application

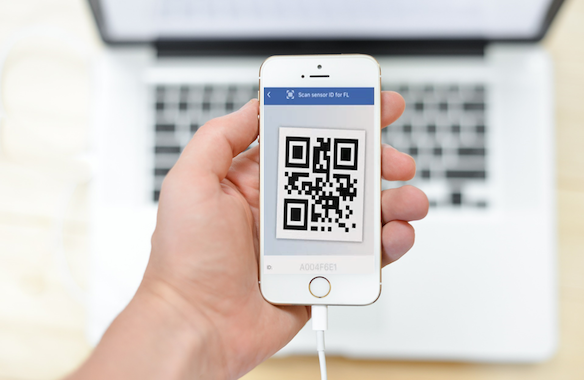

Teaching new tire sensors

Teach-in of new sensors can be done very conveniently by scanning the printed code or alternatively by entering the sensor ID.
Find out more

Changing the position of individual wheels

By selecting the wheels to be exchanged, the sensor assignment can be comfortably adopted.

Find out more

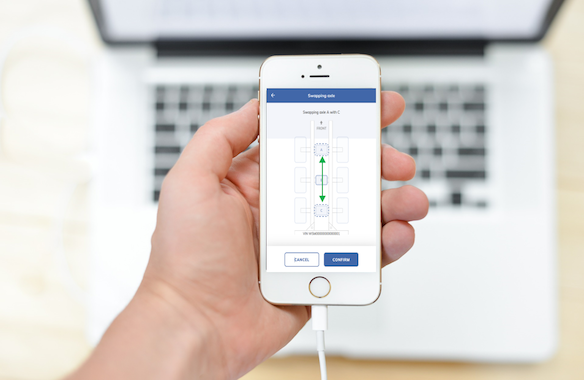

Change axis position

When wheels are simultaneously exchanged over axles, the corresponding sensor positions can be adjusted with the TrailerConnect® Tyre Manager.
Find out more

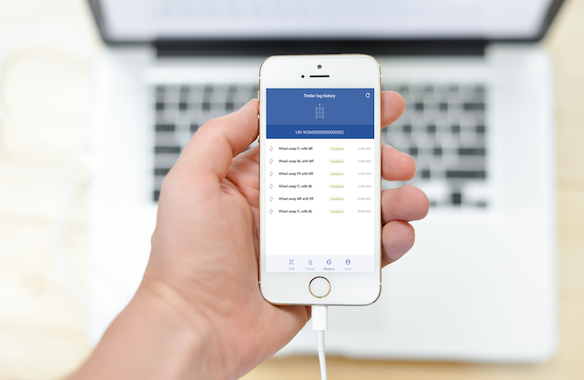

Documentation of sensor changes

Changes of the sensor positions are documented and can be viewed clearly for each trailer.
Find out more
  • Which telematics control units is TrailerConnect® TyreManager compatible with?
    The TrailerConnect® TyreManager is compatible with with all current Schmitz Cargobull control units.
  • How do I connect to the trailer?
    You can connect to the trailer by scanning the QR code or by manually entering the vehicle identification number. You can find the QR code on the front side of the trailer.
  • How can I register for TrailerConnect® TyreManager?
    You will find a registration link on our homepage tyremanager.cargobull.com. If someone in your organization is already registered, this person can invite you directly from TrailerConnect® TyreManager.
  • What should be considered during configuration?
    It is necessary that the telematics is supplied with voltage via the EBS during configuration. Therefore, please make sure that the ignition of the truck is switched on.
  • How many configuration changes do i see in the history?
    The last 6 configurations are documented.
  • Why do I have to register for TrailerConnect® TyreManager?
    Data protection is important to us. Therefore, we want to ensure that only authorized persons have access to TrailerConnect® TyreManager. The one-time activation takes place within a maximum of 2 working days.
  • What does the gray representation of the tires mean?
    If one or more tires are displayed in gray, the configuration for these tires has not yet been completed. Please wait until the configuration has run through successfully.
  • How long does a successful configuration take?
    The configuration should be completed successfully within a few minutes. The prerequisite is that the CTU 3 is powered up and that the telematics control unit has sufficient reception capability.
  • Which configurations can be carried out with TrailerConnect® TyreManager?
    You can use TrailerConnect® TyreManager to train new sensors and swap sensor positions. The sensor position can be exchanged wheel or axle by wheel.
  • What do I need to teach a new sensor?
    To train a new sensor, you need the sensor ID. The sensor ID is printed on the sensor. Alternatively, you can scan the DataMatrix code on the sensor.
  • Whom can I contact if I have any questions?
    If you have any questions about TrailerConnect® TyreManager, our support team will be happy to help. You can reach the support team at +49 2558-811818 or helpdesk@trailerconnect.de.
  • What do I need to scan a QR code or data matrix code?
    Please give TrailerConnect® TyreManager access to the camera of your smartphone. Please use the Google Chrome browser for Android smartphones and the Safari browser for iOS smartphones.
