S.KO COOL SMART

S.KO COOL SMART

S.KO COOL SMART box body semi-trailers fulfil the complex requirements demanded in the pharmaceutical industry and represent the optimum refrigerated trailers for transporting pharmaceutical products. Trailer Connect® telematics functions allow you to keep an eye on safety-relevant freight at all times and react in a timely manner as required.
S.KO COOL SMART box body semi-trailer with integrated telematics system

Your benefits

  • Controlled access to the goods. Geofencing means that the box body semi-trailer can only be opened within a specified radius.
    Read more
  • Defined temperature ranges ensure the quality of the goods.
    Read more
  • Pharmaceutical certification as proof of proper transport.
    Read more
  • All trailers in sight at all times. The TrailerConnect®-Telematik gives you a complete overview of the positions of your trailer fleet for greater safety and predictability.
    Read more

Equipment packages

  • Cross-border transport

    The TIR equipment package for even greater safety and comfort in cross-border goods transport. Just what you need when you want to get through the border crossing with shorter waiting times.
    Read more

  • DB equipment

    Combined transport is an economical alternative particularly over longer distances. The trailers have gripper edges enabling the semi-trailers to be easily loaded by crane or reach-stacker, for optimum vertical handling.
    Read more

  • Ferry equipment

    Safe and sound on the open seas with ferry equipment for accompanied and unaccompanied transport. Ferry lashings to secure the trailer on the ferry, clearly labelled lashing point and an underride guard with skid ensure the safety and protection of your asset and goods.
    Read more

  • Pharmaceutical package

    The S.CU cooling unit guarantees the right temperature during transport. Sensors and temperature recorders reliably monitor and document data on the individual temperature zones in the trailer. Partitions, double-decker fittings and load securing rails are available for efficient and safe transport.
    Read more

Overview

Chassis & running gear

  • Chassis
  • Running gear
Chassis
MODULOS short chassis for the S.KO box body semi-trailer

MODULOS chassis

The FERROPLAST® thermal technology box body is self-supporting and warp-resistant. Thanks to their bolted connections, the individual components of the MODULOS trailer chassis can be easily replaced. Corrosion protection is maintained by the galvanised parts.
Find out more
Body

ROTOS

Outstanding riding characteristics thanks to the standard MRH air suspension (Multi-Ride-Height). The innovative ventilation system generates less heat and the brake pads last longer.
Mehr erfahren
Axle lift for better traction

Liftable axle

ROTOS running gears can be optionally equipped with an axle lift function. The axle lift and the starting aid increase efficiency, driving safety and traction and reduce tire wear.

Find out more

Body

  • Double-decker system
  • Rear
  • Floor
  • Roof
Interior
Loading volume with the double-decker system for the S.KO box body semi-trailer

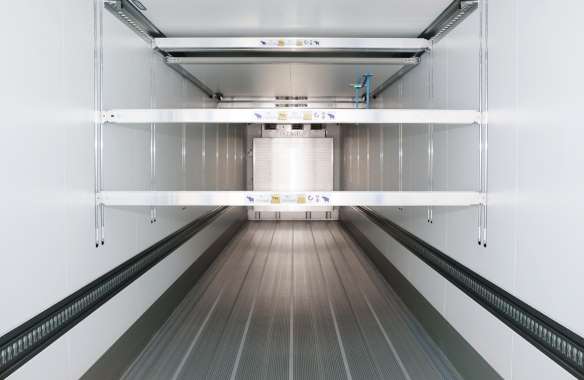

Double-decker system

Flexible and higher utilisation of the trailer's capacity, thanks to its double-decker system. Ideal for freight that cannot be stacked. The system provides for gap-free loading using two infinitely height-adjustable split levels.
Find out more
Rear
Double folding doors made of FERROPLAST? panels for the S.KO box body semi-trailer

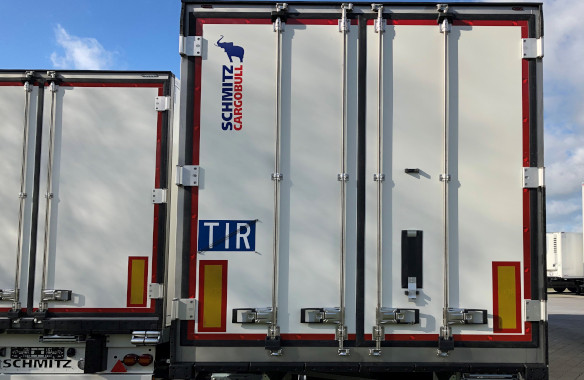

Double wing door

Maximum safety and optimum insulation, thanks to FERROPLAST® rear doors. With single or double locking, depending on transport requirements and trailer dimensions.
Find out more

Dynamic Ramp Protection

The system protects the body when the trailer reverses up to a ramp. At the same time, stainless steel roller bumpers compensate for the trailer's change of height when it is approached by a forklift.
Find out more

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.
Find out more
Floor

Multifunctional floor

Compared to conventional floors, the floor is considerably more durable, non-slip and at the same time lighter. Vertical locking beams can be inserted directly into the recessed load securing profiles. Now even quieter loading and unloading thanks to PIEK-certified multifunctional floor.
Roof
S.KO box body semi-trailer Ferroplast roof

FERROPLAST® roof

The standard FERROPLAST®-insulated roof comes in various versions, ensuring excellent fuel efficiency and outstanding insulation.
Find out more

Temperature-controlled transport

  • MultiTemp equipment
  • Cooling unit
  • Temperatur printer
MultiTemp equipment
Mobile partition for sub-division into different temperature zones

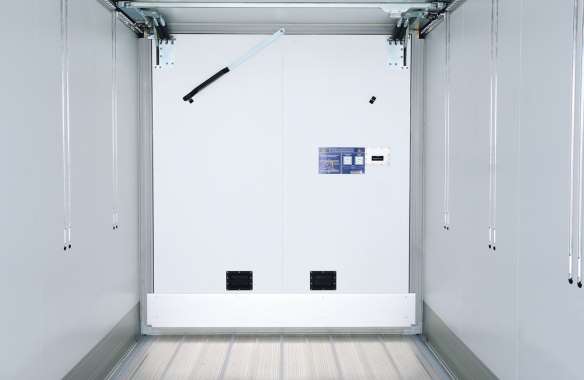

Mobile partition

When transporting refrigerated products, often multiple temperature zones need to be set up within the trailer. Mobile partitions enable the trailer interior to be divided into different temperature zones.
Find out more
Standards in MultiTemp transport with the additional roof evaporator

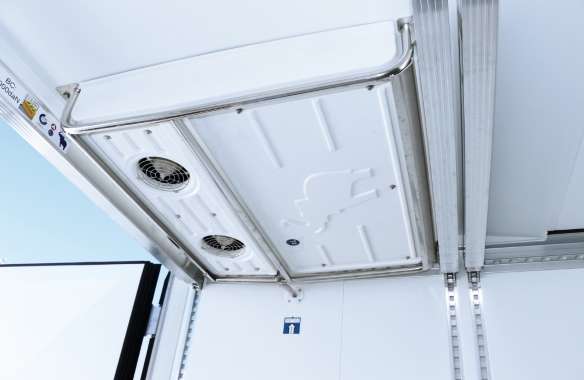

Additional roof evaporator

The roof evaporator is setting new benchmarks with its performance and compact design. Its flat construction and minimal width offers greater loading height under the unit.
Find out more
Cooling unit
Transportkältemaschinen S.CU

S.CU transport cooling unit

The MonoTemp and MultiTemp versions of the S.CU cooling unit delivers optimum cost-effectiveness. Precise temperature management, thanks to sensitive control, low fuel consumption and long maintenance intervals.
Find out more


Temperatur printer

Temperaturdrucker

Temperature printer

With the Schmitz Cargobull temperature printer you can quickly and easily create a paper printout of the certified temperature values directly on the vehicle.
The printout can be configured using the free beSmart App. This is a simple and convenient way of setting and changing, for example, the printing period or the language of the printout.


The temperature printer is an optional feature of the Smart Trailer.

Find out more

Assist systems

  • Door locking system and door contact sensor

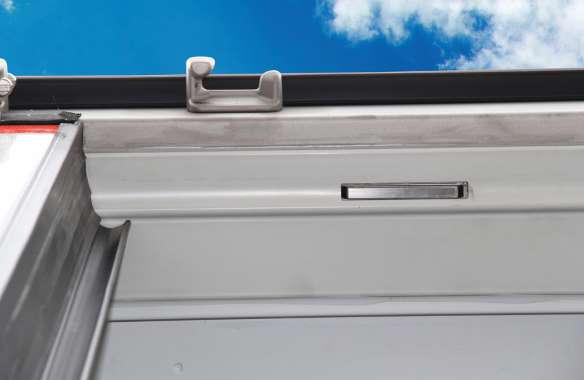

Door locking system and door contact sensor
Protection from unauthorised access with control via the TrailerConnect® portal

Door locking system and door contact sensor

The door sensor detects whether the rear doors are open or closed. With the aid of the door locking system, the rear doors can be remotely locked or unlocked via the TrailerConnect® portal or the beSmart app.
Find out more

Load securing

  • Restraint
Restraint

Load securing beams

Unpalletised freight can be secured by means of flush-mounted load securing rails. Load securing protection beams can be suspended as required, enabling the interior to be freely used.

Load securing rail

The flush-mounted load securing rail prevents damage to the load.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 12642 Code XL

    Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
    Read more

  • ATP certification

    Our trailers comply with ATP Class FRC or FNA, depending on the application and equipment options, to prove that the refrigeration chain remains intact during transport.
    Read more

  • HACCP

    Our trailers are uncompromising when it comes to hygiene for food and pharmaceutical transport. Their interiors comply with the most stringent HACCP cleanliness and hygiene requirements.
    Read more

  • Pharmaceutical transport

    Trailers need to meet certain requirements to carry sensitive pharmaceutical products. A badge with pharmaceutical certificate proves that the trailer meets these requirements.
    Read more

Technical data

  • Internal body length13.4 / 14.7 / 16.8m
  • Intenal body width2,460 or 2,490mm
  • Internal body height*2,350-3,050mm
  • Pallet spaces33 / 36 / 41Euro pallets or 26 ISO pallets
* depending on the statutory requirements and the individual semi-trailer specification.
