S.KO COOL

Strict regulations need to be met when transporting fresh or frozen goods. S.KO COOL box body semi-trailers offer a simple, flexible and efficient solution for temperature-controlled freight transport.

Box body semi-trailer S.KO COOL SMART

Your benefits

New air distribution system – optimised with robust connecting ducts for the S.CU cooling unit – for efficient, uniform temperature control in the body
Read more
Convenient temperature printer as a supplement to the standard digital temperature recorder
Read more
TrailerConnect®-Telematik for the transparent control of your fleet of trailers
Read more
Vapour diffusion-tight, ageing-resistant and shatter-proof box body with FERROPLAST® thermal technology
Read more
Ease of cleaning, due to liquid-tight welded floor pan and flush-fitting attachments for optimum hygiene in the trailer.
Read more
Modular system for individual trailer configuration, e.g. simplified load securing with multifunctional floor, double-decker system and load securing rails.
Read more

Equipment packages

Cross-border transport
The TIR equipment package for even greater safety and comfort in cross-border goods transport. Just what you need when you want to get through the border crossing with shorter waiting times.
Read more
Ferry equipment
Safe and sound on the open seas with ferry equipment for accompanied and unaccompanied transport. Ferry lashings to secure the trailer on the ferry, clearly labelled lashing point and an underride guard with skid ensure the safety and protection of your asset and goods.
Read more

Chassis & running gear

Chassis
Running gear

Chassis

MODULOS short chassis for the S.KO box body semi-trailer

MODULOS chassis

The FERROPLAST^® thermal technology box body is self-supporting and warp-resistant. Thanks to their bolted connections, the individual components of the MODULOS trailer chassis can be easily replaced. Corrosion protection is maintained by the galvanised parts.

Body

ROTOS

Outstanding riding characteristics thanks to the standard MRH air suspension (Multi-Ride-Height). The innovative ventilation system generates less heat and the brake pads last longer.

Axle lift for better traction

Liftable axle

ROTOS running gears can be optionally equipped with an axle lift function. The axle lift and the starting aid increase efficiency, driving safety and traction and reduce tire wear.

The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.

Body

Page
Double-decker system
Special equipment
Rear
Floor
Roof

Side

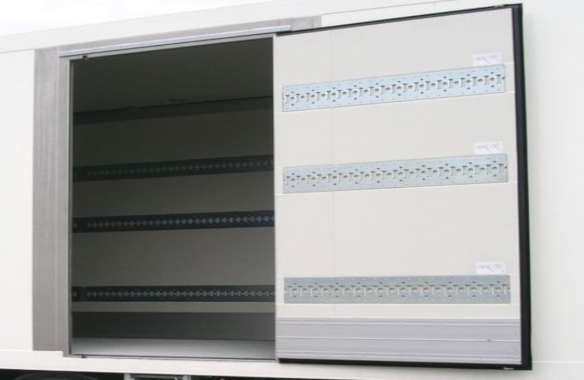

Fast loading and unloading through the side door in the S.KO box body semi-trailer

Side door

A good alternative to partial loads with multi-temperature transport with a partition. The side door enables the trailer to be partially unloaded and provides access to individual MultiTemp chilled zones.

Interior

Loading volume with the double-decker system for the S.KO box body semi-trailer

Double-decker system

Flexible and higher utilisation of the trailer's capacity, thanks to its double-decker system. Ideal for freight that cannot be stacked. The system provides for gap-free loading using two infinitely height-adjustable split levels.

Special equipment

Meat hanging equipment

The roof and side walls of the FERROPLAST^® body are specially reinforced. The Euro meat hanging system is available for meat transport.

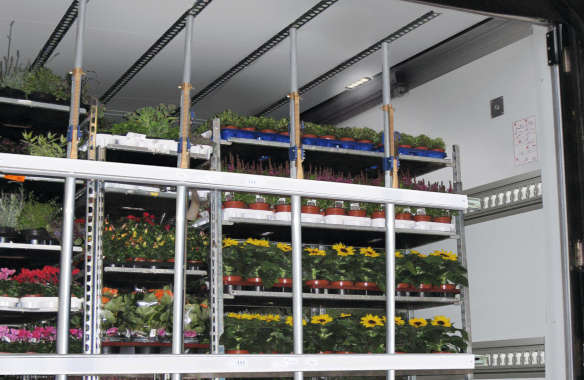

Optimised loading volume for flower transport with the S.KO box body semi-trailer

Optimised loading volume

Higher loading volume for even greater flexibility when transporting goods, due to the adapted side wall thickness. Ideal loading width and optimised interior width of 2,490 mm, particularly for horticultural transport.

Rear

Double folding doors made of FERROPLAST? panels for the S.KO box body semi-trailer

Double wing door

Maximum safety and optimum insulation, thanks to FERROPLAST^® rear doors. With single or double locking, depending on transport requirements and trailer dimensions.

Insulated roller shutter for the S.KO box body semi-trailer

Roller shutter

The insulated roller shutter ensures that there is no more lost time or lost refrigeration, as the trailer can be opened once it has reached the ramp.

Dynamic Ramp Protection

The system protects the body when the trailer reverses up to a ramp. At the same time, stainless steel roller bumpers compensate for the trailer's change of height when it is approached by a forklift.

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.

Scuff plates protect the floor and side walls from wear

Scuff rail

The scuff rail welded to the floor protects the side walls from damage. Insulation quality is unaffected, as there are no screw or rivet joints.

Fast unloading even without a ramp with a tail lift for the S.KO box body semi-trailer

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.

Floor

Multifunctional floor

Compared to conventional floors, the floor is considerably more durable, non-slip and at the same time lighter. Vertical locking beams can be inserted directly into the recessed load securing profiles. Now even quieter loading and unloading thanks to PIEK-certified multifunctional floor.

Roof

S.KO box body semi-trailer Ferroplast roof

FERROPLAST® roof

The standard FERROPLAST^®-insulated roof comes in various versions, ensuring excellent fuel efficiency and outstanding insulation.

Temperature-controlled transport

Cooling unit
Air distribution
MultiTemp equipment
Strip curtain
Temperature printer

Cooling unit

Transportkältemaschinen S.CU

S.CU transport cooling unit

The MonoTemp and MultiTemp versions of the S.CU cooling unit delivers optimum cost-effectiveness. Precise temperature management, thanks to sensitive control, low fuel consumption and long maintenance intervals.

Air distribution

Air ciruclation within the trailer

Air chute system

Efficient cooling, due to optimised air distribution. Three flexible cooling ducts provide for the required distribution of cold air. If partition walls are used, several temperature zones can be produced without additional handling.

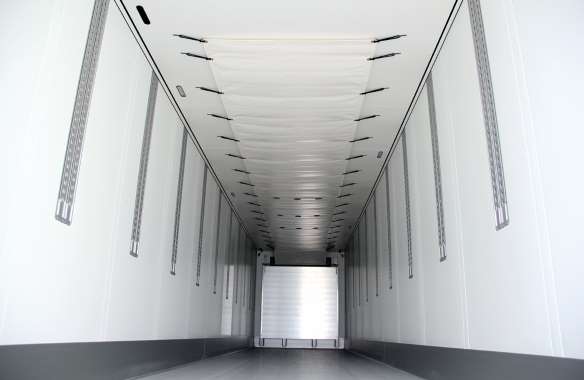

Tensioned cold tarpaulin in the S.KO box body semi-trailer for air distribution in MonoTemp transport

Cold tarpaulin

The tensioned cold tarpaulin suspended under the roof guarantees even distribution of cooled air. The cold tarpaulin is specifically designed for MonoTemp transport.

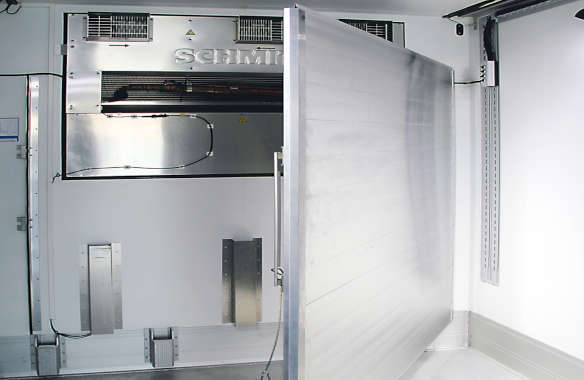

Optimum air circulation through the air circulation wall

Air circulation wall

The circulation wall guarantees a continuous circulation of air, optionally available as a swivel version. Integrated rear latches optimise air circulation.

MultiTemp equipment

Mobile partition for sub-division into different temperature zones

Mobile partition

When transporting refrigerated products, often multiple temperature zones need to be set up within the trailer. Mobile partitions enable the trailer interior to be divided into different temperature zones.

Standards in MultiTemp transport with the additional roof evaporator

Additional roof evaporator

The roof evaporator is setting new benchmarks with its performance and compact design. Its flat construction and minimal width offers greater loading height under the unit.

Strip curtain

Strip curtains at the rear prevent the loss of cold air

Strip curtain

Variable strip curtains, which can be moved lengthwise, guarantee enhanced goods safety while reducing fuel use, as less cooled air is lost through open doors with partial loads.

Temperaturdrucker

Temperature printer

With the Schmitz Cargobull temperature printer you can quickly and easily create a paper printout of the certified temperature values directly on the vehicle.
The printout can be configured using the free beSmart App. This is a simple and convenient way of setting and changing, for example, the printing period or the language of the printout.

The temperature printer is an optional feature of the Smart Trailer.

Load securing

Restraint
Lashing points and aids

Restraint

Load securing beams

Unpalletised freight can be secured by means of flush-mounted load securing rails. Load securing protection beams can be suspended as required, enabling the interior to be freely used.

Load securing rail

The flush-mounted load securing rail prevents damage to the load.

Lashing points and medium

S.KO COOL lashing eyes

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.

Load securing belts enable partial loads to be flexibly secured

Load securing belts

Load securing belts can be flexibly used with partial loads to prevent them from slipping or toppling over.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

DIN EN 12642 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
Read more
ATP certification
Our trailers comply with ATP Class FRC or FNA, depending on the application and equipment options, to prove that the refrigeration chain remains intact during transport.
Read more
HACCP
Our trailers are uncompromising when it comes to hygiene for food and pharmaceutical transport. Their interiors comply with the most stringent HACCP cleanliness and hygiene requirements.
Read more

Technical data

Internal body length13.4 / 14.7 / 16.8m
Intenal body width2,460 or 2,490mm
Internal body height*2,350-3,050mm
Pallet spaces33 / 36 / 41Euro pallets or 26 ISO pallets

* depending on the statutory requirements and the individual semi-trailer specification.
