S.KI SOLID

S.KI SOLID

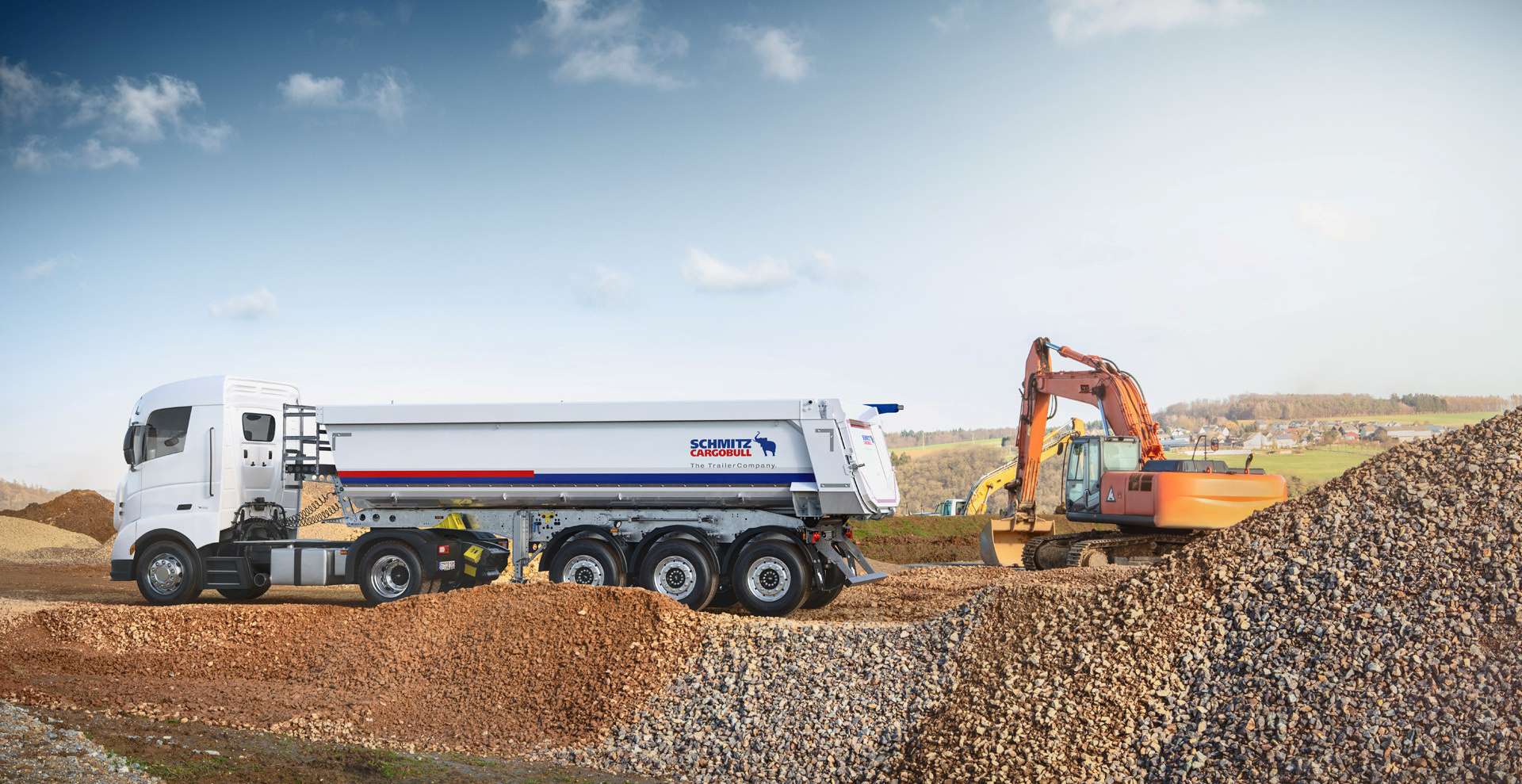

S.KI SOLID tipper trailers with their rounded steel bodies represent the all-purpose transport solution for building materials. Thanks to their excellent wear resistance, these tippers are perfect for abrasive materials.
  • TypeTipper semi-trailers
  • BodyRounded steel body
  • Volume21-56m³
  • Type length7.2 / 8.2 / 9.6 / 10.5
  • Višina korita1.300 - 2.500mm
  • Osi2 - 3
  • ChassisSteel

Your benefits

  • Increased value retention, improved corrosion protection and weight reduction due to the new trough
    Preerite več
  • 50-kg weight reduction due to the new generation frame. In addition, improved corrosion protection.
    Preerite več
  • 280-kg weight reduction for increased payload capacity while improving operability, product quality, durability and reliability
    Preerite več
  • More safety: the revised underride guard already meets the legal requirements according to ECE-R58.03.
    Preerite več
  • The flat, wider floor creates a low centre of gravity and greater driving stability.
    Preerite več
  • Trailer chassis concept for use with two and three-axle semi-trailer tractor units.
    Preerite več
  • Zaokroženo korito iz na obrabo odpornega drobnozrnatega jekla za dolgo življenjsko dobo, nizek obseg vzdrževanja in visoko stabilnost vrednosti.
    Preerite več
  • Robust, welded steel chassis and running gear suitable for off-road terrain.
    Preerite več
  • Oblika korita preprečuje sprijemanje tovora na korito. S tem je povečana varnost pri razkladanju.
    Preerite več

Overview

Šasija in podvozje

  • Podvozje
  • Vozni mehanizem
  • Osvetlitev
  • Deli za dogradnjo
Chassis
Robust, hot galvanised and weight-optimised EXTRA LIGHT chassis

EXTRA LIGHT chassis

The robust, hot galvanised and weight-optimised EXTRA LIGHT chassis guarantees maximum payload and long-term value retention. Optional hot galvanising for the best possible corrosion protection.
Izvedite več
The steel chassis is reliable, durable, low-maintenance and ideal for off-road operation with excellent value retention.

Standardna šasija

Jeklena šasija je obremenljiva, potrebuje malo vzdrževanja in je primerna za vožnjo po terenu. Zasnovana z visoko torzijsko togostjo zagotavlja visoko stabilnost pred prevrnitvijo. Izbirno vroče cinkanje je najboljša protikorozijska zaščita.
Izvedite več
Heavy-duty running gear and chassis for extremely tough road conditions

Heavy-duty chassis

Designed for use on poor-quality roads and extreme winter conditions, the Heavy-Duty running gear delivers maximum value retention and excellent safety. Optional hot galvanising for the best possible corrosion protection.
Izvedite več

Zložljiva naletna zaščita

Preklopna naletna zaščita - izbirno z elektropnevmatskim upravljanjem - zagotovi v stanju, preklopljenem navzgor, za več prostora pri tleh za razkladanje v finišer. Več varnosti: predelana naletna zaščita že danes izpolnjuje zakonske zahteve po ECE-R58.03. Vzmetno podprti preklopni mehanizem olajša upravljanje.
Več o novi generaciji šasije
Running gear
Reliable mileage (km) with the ROTOS? axle

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.
Izvedite več
Lifting axle for the S.KI tipper semi-trailer

Dvižna os in pomoč pri speljevanju

Dvižna os in pomoč pri speljevanju povišata učinkovitost, varnost pri vožnji in oprijem koles na terenu, zato sta serijska oprema pri vseh 3-osnih oprtnih prekucnikih S.KI.
Izvedite več
The paver brake controls the brake pressure during unloading

Paver brake

During operation of the road paver, the truck-trailer combination is pushed during tipping. The paver brake controls the brake pressure, preventing the semi-trailer from rolling away on sloping ground.
Izvedite več
Osvetlitev

Lighting

A range of lighting options further ensures the best possible safety on the road and during operations.
Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash, signalling to other road users that the vehicle is about to turn.
Izvedite več
Deli za dogradnjo

Deli za dogradnjo

Deli za nadgradnjo zaokrožujejo uporabnost vozila in vam olajšajo transportni vsakdan. To je le nekaj od mnogih možnosti razširitve.

nadgradnjo

  • Korito
  • Dno in stranske stene
  • Streha in prekrivala
  • Delovni oder
  • Zadnji del
Korito

Jekleno okroglo korito

Robustno jekleno zaokroženo korito ima zaradi ploskega, širšega dna nizko težišče, kar poveča stabilnost pri vožnji in varnost pri raztovarjanju. Zaokroženo korito izboljšuje drsenje tovora pri raztovarjanju.
Floor

Floor and side wall thicknesses

Different floor and side wall thicknesses are matched to your applications.
Streha

Drsna streha

Udoben in varen strešni sistem. Streho je mogoče hitro in enostavno upravljati na tleh. Po izbiri v ročni ali električni izvedbi.

Roller tarpaulin

Easy-to-operate and robust well cover protects the cargo from moisture and dirt, especially during transport. An optional quick-release clamping mechanism saves time and simplifies operation.
Delovni oder
Working platform for the S.KI LIGHT

Delovni oder

Delovni oder s protizdrsnim dnom, lestev za vstop v korito in pritrditev hidravličnih gibkih cevi omogočajo enostavno in varno upravljanje rolo ponjave.
Izvedite več
Rear

Izvedbe zadnje stene

Različne izvedbe zadnje stene za najboljše možno raztovarjanje, optimalno prilagojene trenutni transportni nalogi.

Asistenčni sistemi

  • ob-board-weight-system
  • Sistemi za nadzor tlaka v pnevmatikah
  • prikaza obrabe zavornih oblog
Pressure monitoring system
S.KI_tyre pressure control_re-pressurisation_system

Tyre re-pressurisation system

The tyre re-pressurisation system checks the tyre pressure and automatically inflates the tyre if required. This results in lower tyre wear and improved driving characteristics.
Izvedite več
The Schmitz Cargobull tyre pressure control system.

TPMS with autolocation

The tyre pressure monitoring system displays when you need to top up air into a tyre. With autolocation the sensor is assigned to the correct tyre position. The Schmitz Cargobull sensor learns independently and records the tyre pressure and tyre temperature data. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Izvedite več
Brake pad wear indicator
Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Izvedite več

What our customers say

The Geiger Group tests S.KI tipper semi-trailers

Geiger Group

The Oberstdorf-based Geiger Group tests Schmitz Cargobull prototypes. This customer relationship also began with a test.
Izvedite več

Naše storitve

Pogodbe o servisiranju

S primerno pogodbo o storitvah obdržite popoln nadzor nad stroški, mi pa poskrbimo, da ostanete mobilni!
Več o:Pogodbe o servisiranju
Service Partners keep you mobile and minimise your downtimes.

Telematika

S telematiko TrailerConnect® dobite vse potrebne informacije o vaših vozilih.
Več o:Telematika
TrailerConnect? telematics provides you with all the information you need on your trailers.

Financiranje

Izdelamo vam individualno ponudbo s privlačnimi pogoji za celoten življenjski cikel vaše investicije.
Več o:Financiranje
Individual quote with attractive terms and conditions for the entire lifecycle of your investment.

Mediji

  • Data sheet S.KI SOLID 7.2
    Download
  • S.KI SOLID tipper trailer with rounded steel body - Short information
    Download
