S.KO COOL SMART

S.KO COOL SMART

Low total operating costs make the S.KO COOL SMART box body semi-trailer highly economical. It offers maximum freight security, ensures the safe handling of temperature-controlled freight and short turnaround times at the ramp. The TrailerConnect® telematics system, fitted as standard, provides for transparency and end-to-end documentation of the refrigeration chain.

Your benefits

  • New air distribution system – optimised with robust connecting ducts for the S.CU cooling unit – for efficient, uniform temperature control in the body
    Read more
  • TrailerConnect® telematics system for the transparent control of your fleet of trailers.
    Read more
  • Schmitz Cargobull's smart security components meet the highest security standards of the Transported Asset Protection Association (TAPA)
    Read more
  • Convenient temperature printer as a supplement to the standard digital temperature recorder
    Read more
  • Modular system for individual trailer configuration, e.g. simplified load securing with multifunctional floor, double-decker system and load securing rails.
    Read more
  • Vapour diffusion-tight, ageing-resistant and shatter-proof box body with FERROPLAST® thermal technology.
    Read more
  • Ease of cleaning, due to liquid-tight welded floor pan and flush-fitting attachments for optimum hygiene in the trailer.
    Read more

Equipment packages

  • Cross-border transport

    The TIR equipment package for even greater safety and comfort in cross-border goods transport. Just what you need when you want to get through the border crossing with shorter waiting times.
    Read more

  • DB equipment

    Combined transport is an economical alternative particularly over longer distances. The trailers have gripper edges enabling the semi-trailers to be easily loaded by crane or reach-stacker, for optimum vertical handling.
    Read more

  • Ferry equipment

    Safe and sound on the open seas with ferry equipment for accompanied and unaccompanied transport. Ferry lashings to secure the trailer on the ferry, clearly labelled lashing point and an underride guard with skid ensure the safety and protection of your asset and goods.
    Read more

  • Pharmaceutical package

    The S.CU cooling unit guarantees the right temperature during transport. Sensors and temperature recorders reliably monitor and document data on the individual temperature zones in the trailer. Partitions, double-decker fittings and load securing rails are available for efficient and safe transport.
    Read more

Reliable. Safe. Smart.

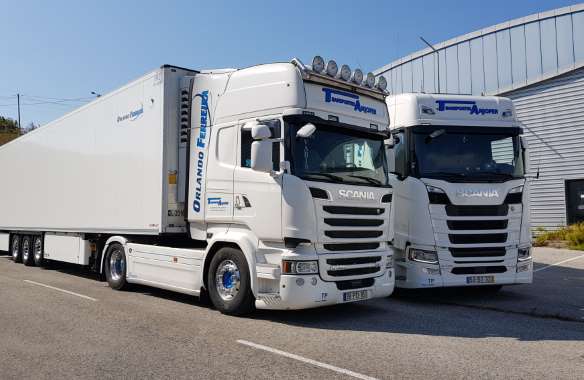

A carrier delivers pharmaceutical products to the Netherlands and France with the S.KO COOL reefer with S.CU V2.0 cooling unit.

S.KO COOL SMART box body semi-trailer with integrated telematics system

Overview

Chassis & running gear

  • Chassis
  • Running gear
Chassis
MODULOS short chassis for the S.KO box body semi-trailer

MODULOS chassis

The FERROPLAST® thermal technology box body is self-supporting and warp-resistant. Thanks to their bolted connections, the individual components of the MODULOS trailer chassis can be easily replaced. Corrosion protection is maintained by the galvanised parts.
Find out more
Running gear

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.
Learn more
Axle lift for better traction

Lifting axle

The axles of ROTOS® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

Find out more
The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.
Find out more

Body

  • Page
  • Double-decker system
  • Special equipment
  • Rear
  • Floor
  • Roof
  • Lighting
Page
Fast loading and unloading through the side door in the S.KO box body semi-trailer

Side door

A good alternative to partial loads with multi-temperature transport with a partition. The side door enables the trailer to be partially unloaded and provides access to individual MultiTemp chilled zones.
Find out more
Interior
Loading volume with the double-decker system for the S.KO box body semi-trailer

Double-decker system

Flexible and higher utilisation of the trailer's capacity, thanks to its double-decker system. Ideal for freight that cannot be stacked. The system provides for gap-free loading using two infinitely height-adjustable split levels.
Find out more
Special equipment

Meat hanging equipment

The roof and side walls of the FERROPLAST® body are specially reinforced. The Euro meat hanging system is available for meat transport.
Optimised loading volume for flower transport with the S.KO box body semi-trailer

Optimised loading volume

Higher loading volume for even greater flexibility when transporting goods, due to the adapted side wall thickness. Ideal loading width and optimised interior width of 2,490 mm, particularly for horticultural transport.
Find out more
Rear
Double folding doors made of FERROPLAST? panels for the S.KO box body semi-trailer

Double wing door

Maximum safety and optimum insulation, thanks to FERROPLAST® rear doors. With single or double locking, depending on transport requirements and trailer dimensions.
Find out more
Insulated roller shutter for the S.KO box body semi-trailer

Roller shutter

The insulated roller shutter ensures that there is no more lost time or lost refrigeration, as the trailer can be opened once it has reached the ramp.
Find out more
Dynamic Ramp Protection System (DRP) offers protection when approaching the ramp

Dynamic Ramp Protection

The system protects the body when the trailer reverses up to a ramp. At the same time, stainless steel roller bumpers compensate for the trailer's change of height when it is approached by a forklift.
Find out more

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.
Find out more
Scuff plates protect the floor and side walls from wear

Scuff rail

The scuff rail welded to the floor protects the side walls from damage. Insulation quality is unaffected, as there are no screw or rivet joints.
Find out more
Fast unloading even without a ramp with a tail lift for the S.KO box body semi-trailer

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.
Find out more
Floor

Multi-functional floor

The floor has a significantly longer service life than conventional floors, while also being lighter and more slip-resistant. Vertical clamping beams can be inserted directly into the recessed load securing profiles.
Roof
S.KO box body semi-trailer Ferroplast roof

FERROPLAST® roof

The standard FERROPLAST®-insulated roof comes in various versions, ensuring excellent fuel efficiency and outstanding insulation.
Find out more
Side wall
S.KO box body semi-trailer interior lighting

Internal lighting

Trailers are regularly loaded and unloaded at night or directly in the warehouse. Good illumination of the interior is therefore crucial for safe working conditions.
Find out more
S.KO box body semi-trailer exterior lighting

External lighting

Side markers, and front and rear lights on trailers are required by law. Additional reversing lights or working spotlights and a flashing LED side marking light are optionally available.
Find out more

Temperature-controlled transport

TrailerConnect®-Telematics

The TrailerConnect® telematics system masters these challenges in the field of temperature-controlled transport:

  • Constant temperature
    • In temperature-controlled transport, the cold chain must be maintained throughout the entire transport and the temperature in the trailer must remain constant. The S.KO COOL semi-trailers with FERROPLAST® insulation and Schmitz Cargobull refrigeration machine are optimally matched to each other and reliably keep the temperature constant.
    Read more
  • Detect temperature deviations early and intervene
    • TrailerConnect® telematics detects deviations in real time to ensure compliance with temperature requirements and protect sensitive goods. Warning messages enable the driver and dispatcher to take appropriate action in good time and protect the goods from spoilage.
    Read more
  • Compliance with regulations
    • Strict regulations and guidelines must be taken into account in temperature-controlled transport. Box semi-trailer, transport conditions and reports must comply with specifications such as GDP (Good Distribution Practice) and the immediately available temperature reports according to DIN 12863. The right vehicle for the various requirements can be selected in the TrailerConnect® portal.
    Read more
  • Plan maintenance optimally
    • Failures in the refrigeration machine can lead to damage to the products being transported. With TrailerConnect® telematics and associated services, e.g. Predictive Maintenance ensure that maintenance is planned and carried out with foresight.
    Read more

Advantages for the dispatcher

  • All information at a glance
  • Efficient planning of routes
  • Remote access to refrigeration machine and trailer
  • Transparent processes and tour monitoring, also of subcontractors used
  • Fast reaction to events (e.g. correction of setpoints)
  • Reliable compliance with the cold chain and optimum processes
  • Transport data available at all times
  • Automatic recording of the route from the start

Advantages for the fleet manager

  • Fast and digital availability of documentation (e.g. temperature records)
  • Optimal selection of the right vehicle and equipment (certificates, documents, reports)
  • Central monitoring of transport orders in a clear manner on one platform
  • Fast communication in case of questions

Advantages for the driver

  • All information in one platform ensures efficient communication between driver and dispatcher
  • Better concentration on transport thanks to presettings on the refrigeration unit and the rear door
  • Timely warning of disruptions and impending breakdowns
  • Avoidance of breakdowns
  • Optimised route planning by determining the estimated time of arrival (ETA) and taking driving times into account

Made for your everyday life - TrailerConnect® Portal

In the TrailerConnect® Portal, your transport data is clearly displayed and you have all the important information at a glance. With just a few settings, you configure the required messages in the TrailerConnect® Portal and keep the sensitive temperature management under control even from your desk.
Find out more

What exactly is behind the individual benefits in the portal?

  • So you have all tours and events at a glance
    - Clear presentation in the portal as a map (Google Maps), graphic or list
    - Current status of tour or fleet
    - Summary of histories
    - Individual setting of alarms and setpoints
  • This is what TrailerConnect® Data Management Center (DMC) and TrailerConnect® TourTrack provide:

    − Secure and controlled data exchange with customers and shippers
    − Integrated subcontractor network displayed anonymously
    − Individual configuration of each route with automated route start, current status messages and ETA determination
  • This gives you an overview of the running time of the cooling unit
    − Monitoring the level of the refrigeration machine in the portal with a tank sensor for diesel-powered refrigeration machines and a battery monitor for electric refrigeration machines
    − Alarm in time, before failure is imminent
  • In this way, the portal supports you in maintaining the cold chain
    − Two-way communication with the cooling unit
    − Current cooling unit status in real time - even when the trailer is uncoupled
    − Changing settings and setpoints on the cooling unit in the portal: e.g. switching on and off, predefined temperature sets and alarms
  • How to obtain legally compliant proof of compliance with the cold chain
    − Digital temperature recorder integrated in the telematics control unit CTU Pro
    − Creation of temperature reports (according to DIN 12863)
    − Transmission via digital temperature recorder or temperature printer on the vehicle (optional)
    − If required, portal access for clients to their data
  • This is how you protect the cargo from unauthorised access
    − Door locking system on the trailer PIN-secured
    − Central control of the door locking system in the portal
    − Access to freight only in defined zones with geofences
    − Alarm informs in case of unauthorised door opening
  • Air distribution
  • Cooling unit
  • MultiTemp equipment
  • Strip curtain
  • Temperature printer
Air distribution
Tensioned cold tarpaulin in the S.KO box body semi-trailer for air distribution in MonoTemp transport

Cold tarpaulin

The tensioned cold tarpaulin suspended under the roof guarantees even distribution of cooled air. The cold tarpaulin is specifically designed for MonoTemp transport.
Find out more
Optimum air circulation through the air circulation wall

Air circulation wall

The circulation wall guarantees a continuous circulation of air, optionally available as a swivel version. Integrated rear latches optimise air circulation.
Find out more
Cooling unit
MonoTemp and MultiTemp version of the S.CU transport cooling unit

S.CU transport cooling unit

The MonoTemp and MultiTemp versions of the S.CU cooling unit delivers optimum cost-effectiveness. Precise temperature management, thanks to sensitive control, low fuel consumption and long maintenance intervals.
Find out more
MultiTemp equipment
Mobile partition for sub-division into different temperature zones

Mobile partition

When transporting refrigerated products, often multiple temperature zones need to be set up within the trailer. Mobile partitions enable the trailer interior to be divided into different temperature zones.
Find out more
Standards in MultiTemp transport with the additional roof evaporator

Additional roof evaporator

The roof evaporator is setting new benchmarks with its performance and compact design. Its flat construction and minimal width offers greater loading height under the unit.
Find out more
Strip curtain
Strip curtains at the rear prevent the loss of cold air

Strip curtain

Variable strip curtains, which can be moved lengthwise, guarantee enhanced goods safety while reducing fuel use, as less cooled air is lost through open doors with partial loads.
Find out more


Temperature printer

Temperaturdrucker

Temperature printer

With the Schmitz Cargobull temperature printer you can quickly and easily create a paper printout of the certified temperature values directly on the vehicle.
The printout can be configured using the free beSmart App. This is a simple and convenient way of setting and changing, for example, the printing period or the language of the printout.


The temperature printer is an optional feature of the Smart Trailer.

Find out more

Assist systems

  • Safety refrigerated case
  • Door locking system and door contact sensor
  • Tyre pressure systems
  • Brake pad wear indicator
  • Fuel indicator with LED display
  • Flashing side marking lights
  • Electronic ramp approach aid

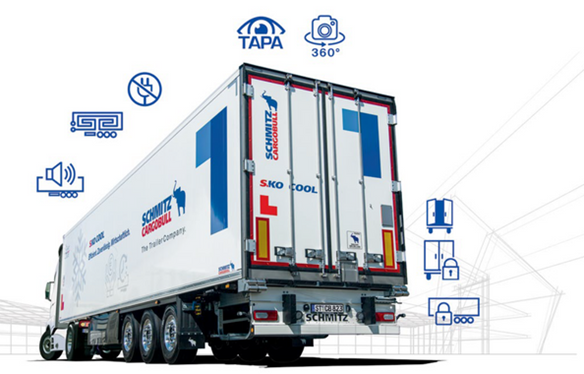

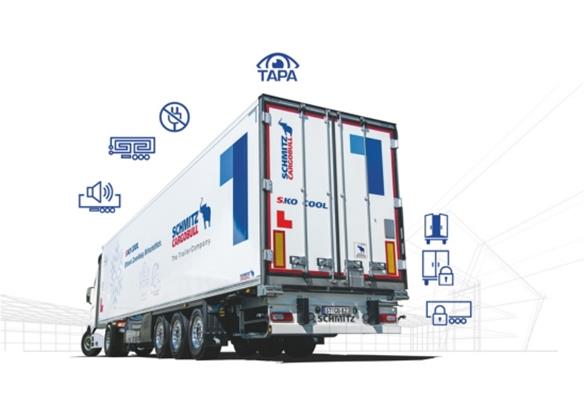

Safety refrigerated case

Transport safety ex works

Theft of high-value cargo is on the rise. Robust box bodies alone are no longer sufficient for transporting expensive goods.

Schmitz Cargobull's smart security components meet the highest security standards of the Transported Asset
Find out more
Door locking system and door contact sensor
Protection from unauthorised access with control via the TrailerConnect® portal

Door locking system and door contact sensor

The door sensor detects whether the rear doors are open or closed. With the aid of the door locking system, the rear doors can be remotely locked or unlocked via the TrailerConnect® portal or the beSmart app.
Find out more
Pressure monitoring system
Control and timely information on tyre pressure with the tyre pressure system

Tyre re-pressurisation system

The tyre re-pressurisation system checks the tyre pressure and automatically inflates the tyre if required. Lower tyre wear and improved driving characteristics without you needing to re-inflate the tyres yourself.
Find out more
The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Find out more
Brake pad wear indicator
Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Find out more
Fuel indicator with LED display
LED tank display enables the fuel level to be read off

Fuel indicator with LED display

The fuel level of the cooling unit can always be clearly read on the tank LED display.
Find out more
Flashing side marking lights
Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash and signal to other road users that the vehicle is about to turn.
Find out more
Electronic ramp approach aid
Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.
Find out more

Load securing

  • Restraint
  • Lashing points and aids
Restraint

Load securing beams

Unpalletised freight can be secured by means of flush-mounted load securing rails. Load securing protection beams can be suspended as required, enabling the interior to be freely used.

Load securing rail

The flush-mounted load securing rail prevents damage to the load.
Lashing points and aids
S.KO COOL lashing eyes

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.
Find out more
Load securing belts enable partial loads to be flexibly secured

Load securing belts

Load securing belts can be flexibly used with partial loads to prevent them from slipping or toppling over.
Find out more

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 1264 Code XL

    Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
    Read more

  • ATP certification

    Our trailers comply with ATP Class FRC or FNA, depending on the application and equipment options, to prove that the refrigeration chain remains intact during transport.
    Read more

  • HACCP

    Our trailers are uncompromising when it comes to hygiene for food and pharmaceutical transport. Their interiors comply with the most stringent HACCP cleanliness and hygiene requirements.
    Read more

  • Pharmaceutical transport

    Trailers need to meet certain requirements to carry sensitive pharmaceutical products. A badge with pharmaceutical certificate proves that the trailer meets these requirements.
    Read more

Technical data

  • Internal body length13.4 / 14.7 / 16.8m
  • Intenal body width*2,460 or 2,490mm
  • Internal body height*2,350-3,050mm
  • Pallet spaces33 / 36 / 41Euro pallets

What our customers say

  • Orlando Ferreira
  • Pfenning Logistics Group
  • TAE
  • STI
orlando Fereira

Orlando Ferreira

The partner companies Transportes Orlando Ferreira and Transportes Anjofer, which are based in Marteleira in Portugal, are convinced of the advantages of Schmitz Cargobull's Full Service contracts.
Find out more
The Pfenning Logistics Group transports goods in Schmitz Cargobull semi-trailers.

Pfenning Logistics Group

The Pfenning Logistics Group transports goods for food retailers with Schmitz Cargobull vehicles.

Find out more
TAE

TAE Transports i Serveis integrals

The Spanish transport and logistics company TAE Transports i Serveis integrals is reinforcing its fleet with 40 S.KO COOL SMART reefer with the EXECUTIVE PLUS package and is therefore once again relying on our technology and services.
Find out more
STI Freight Management relies on S.KO COOL box body semi-trailers.

STI Freight Management

STI Freight Management is investing in the latest generation of S.KO COOL box body semi-trailers and is planning to gradually equip its entire fleet with the new Smart Trailer technology.
Find out more
* depending on the statutory requirements and the individual semi-trailer specification.

Our services

Service contracts

The right service contract gives you full control over the costs and we make sure that you stay mobile!
More about:Service contracts
Service Partners keep you mobile and minimise your downtimes.

Telematics

TrailerConnect® telematics provides you with all the information you need on your trailers.
More about:Telematics
TrailerConnect? telematics provides you with all the information you need on your trailers.

Financing

We can provide you with an individual quote with attractive terms and conditions for the entire lifecycle of your investment.
More about:Financing
Individual quote with attractive terms and conditions for the entire lifecycle of your investment.

Media

  • Customer Journey S.KO COOL
    Download
  • Cooling units S.CU - Short information
    Download
  • Safety refrigerated case S.KO COOL - Short information
    Download
  • S.KO COOL SMART - Short information
    Download

+44 (0) 1925 732886

Get in touch with us

To get you in contact with the right sales representative, please send us a message with your questions so we can start the conversation!
