S.CF ALLROUND 20-45

More safety and reliability in intermodal transport The new generation of container chassis from Schmitz Cargobull provides you with extremely durable, robust and flexible solutions for your container transport. Improved technology, optimised handling and additional functions make the new chassis the ideal partner for every transport task.

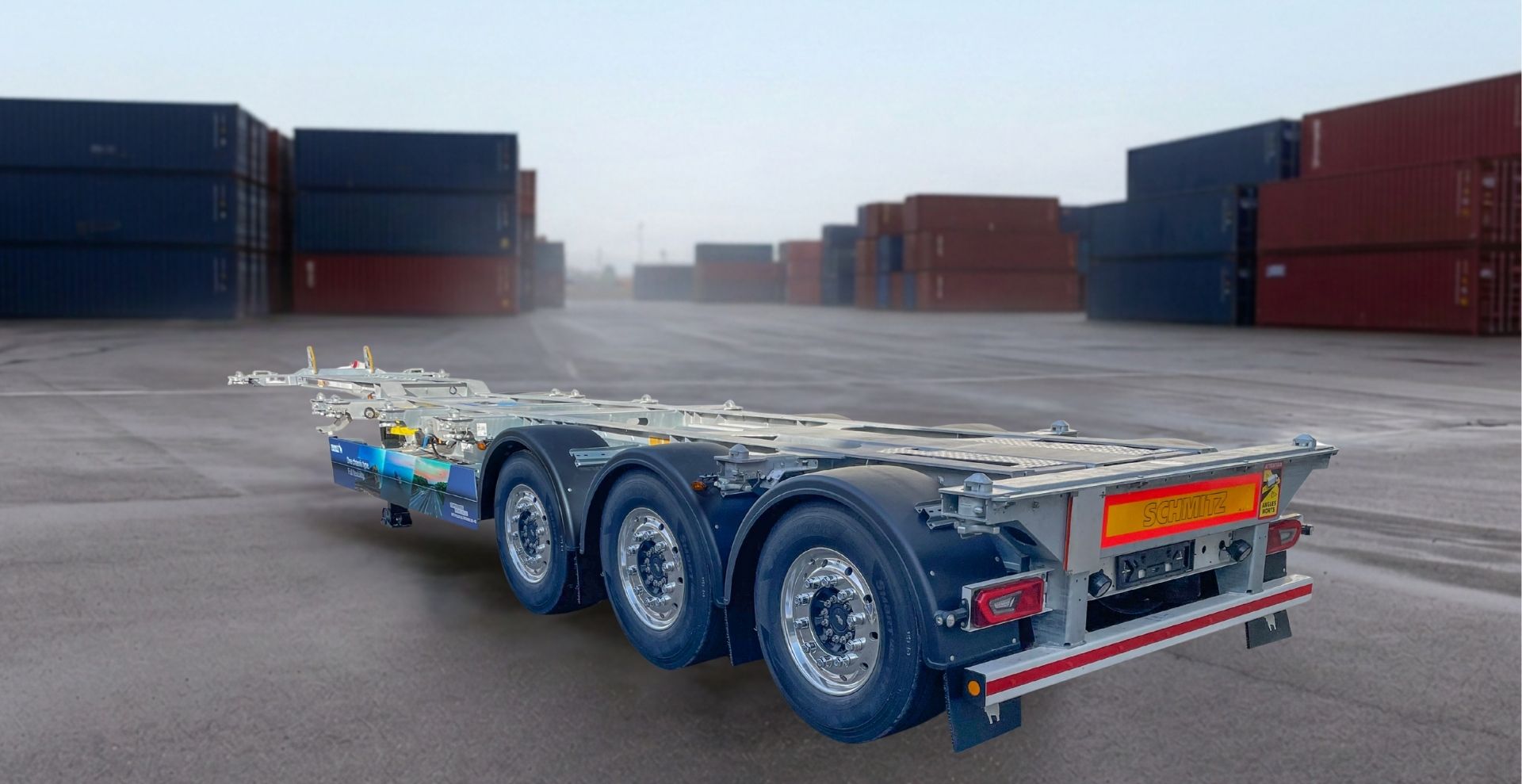

The S.CF Allround 20-45 semi-trailer container chassis delivers flexibility.

Your benefits

Flexible: with mountings for 20' to 45' containers with or without tunnel
Read more
Optional: Locking systems for 40' and 45' containers without tunnel
Read more
Well thought-out: 130 mm frame neck height for a maximum 4,000 mm overall height
Read more
Practical: pneumatic rear extension, mechanical front extension
Read more
Seaworthy: 2 pairs of ferry lashings
Read more

Equipment features

Chassis
Running gear
Locking mechanisms
Others

Chassis

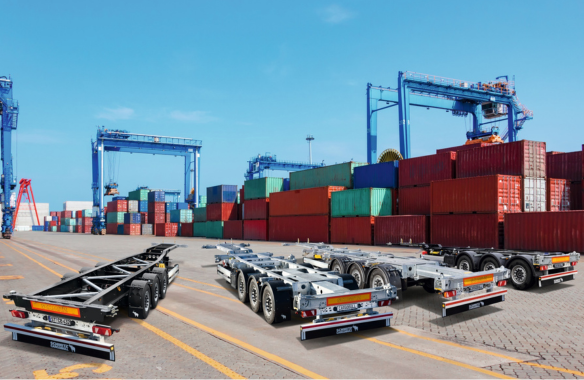

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

General

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

Front extension

The spring-mounted, roller-borne front extension for 45' containers can be simply and easily operated to save time.

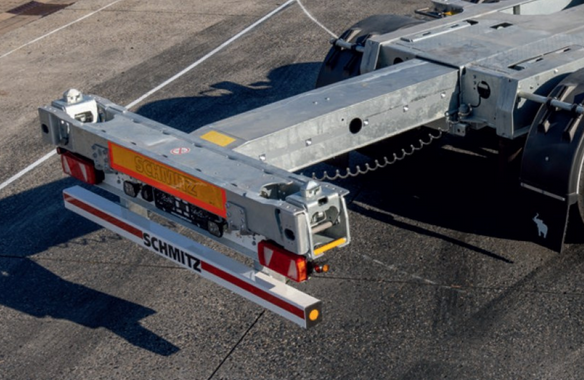

The rear extension can be pneumatically extended to the required container position.

Rear extension

The rear extension can be pneumatically extended to the required container position.

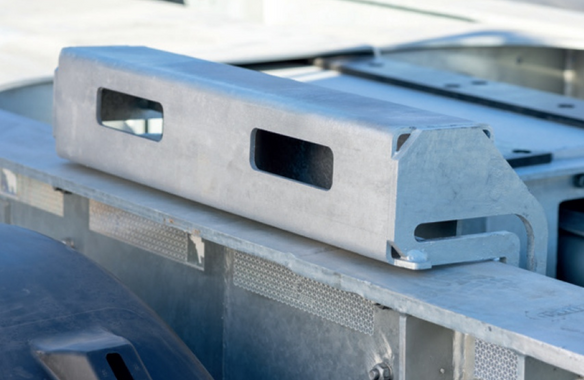

S.CF container support

Container supports

Optional: three pairs of folding container supports for 40'/45' containers without tunnel.

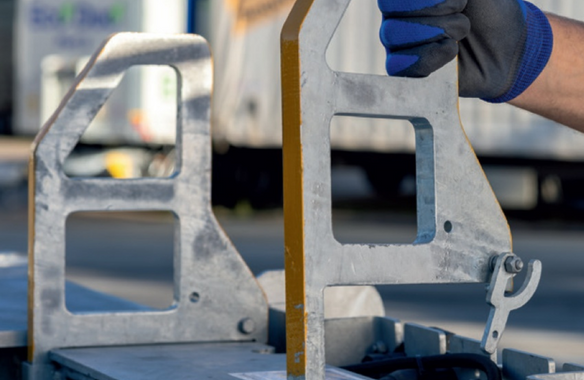

S.CF container guide

Container guides

Hook-secured container guides simplify the positioning of tunnel containers.

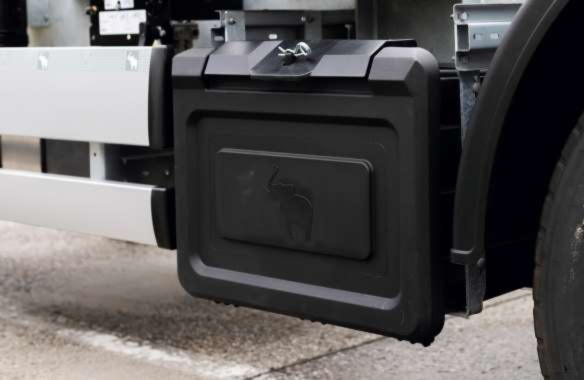

All the required equipment is stored in the tool box.

Toolbox

All the required tools and equipment are safely and tidily stored in the optional, sturdy toolbox.

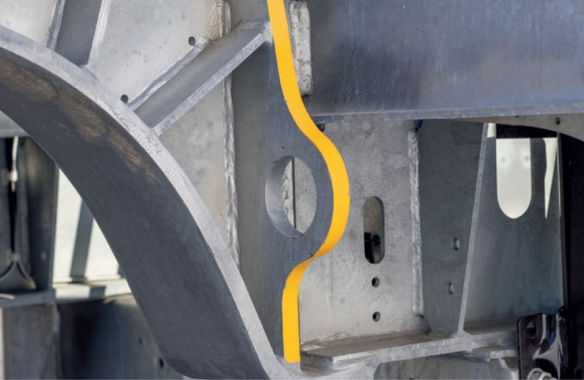

The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Ferry lashings

The semi-trailer container chassis can be equipped with ferry lashings.

Running gear

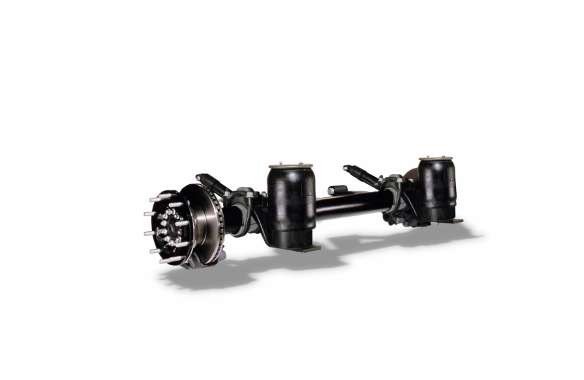

Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS? running gear

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. Ideally matched components ensure reliable brake performance even in continuous operation.

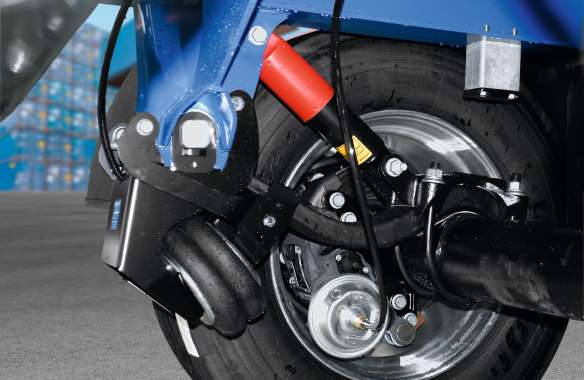

The lift axle extends the wheelbase, increasing the pressure on the drive axle.

Automatic axle lift

The optional lift axle as a starting aid extends the wheelbase, increasing the pressure on the drive axle.

Locking mechanisms

Your semi-trailer container chassis fits to the container in a matter of moments.

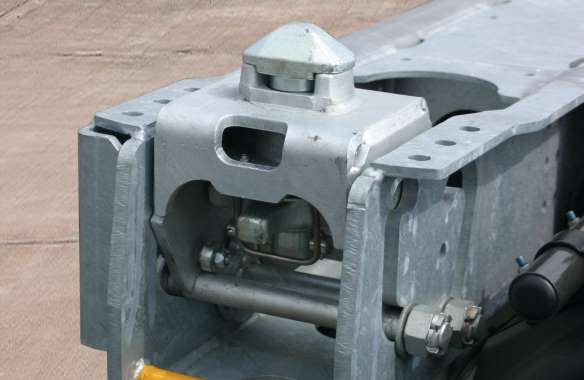

STEP LOCKs

The STEP LOCKs on the rear extension let you adjust your container chassis to containers with or without a tunnel in a matter of moments. The locking height can be changed with ease.

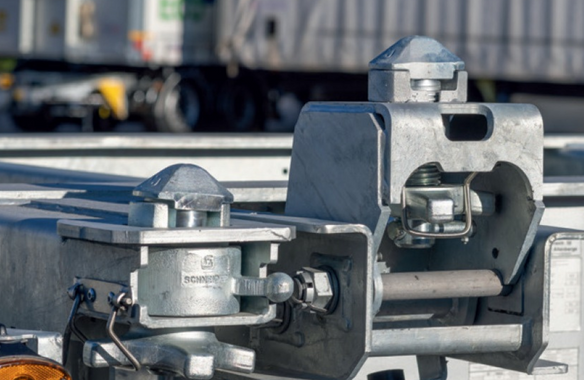

Fold up, let the safety hooks engage and mount the container.

KLAPP LOCKs

Two KLAPP LOCKs are used to lock the rear end of the front container when transporting 2 x 20' containers: fold up, let the safety hooks engage and mount the container.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

MULTI LOCKs

The MULTI LOCK locking mechanism on the mechanical front extension to accommodate 45' Euro containers for total versatility.

Others

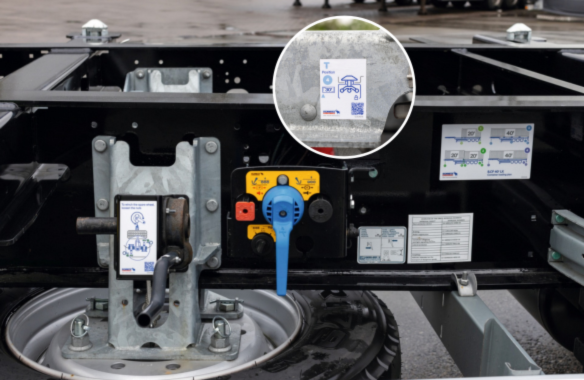

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Brief Information: Transport solution for refrigerated containers
Download

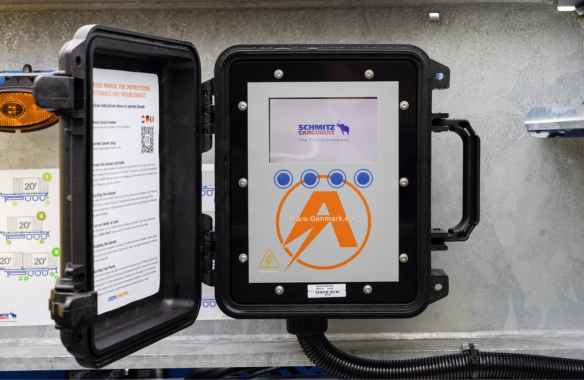

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.

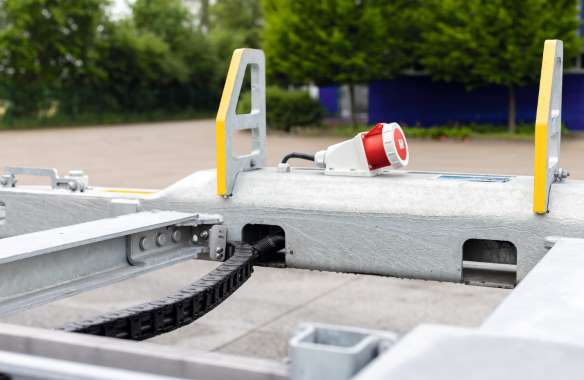

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.

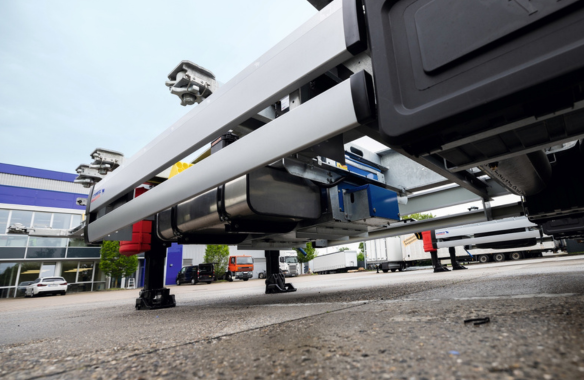

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.

Your advantages

One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
High ground clearance of approx. 310 mm
Self-sufficient power supply for up to 60 hours from remote units
Branded product with large service network
Immediately available from stock
